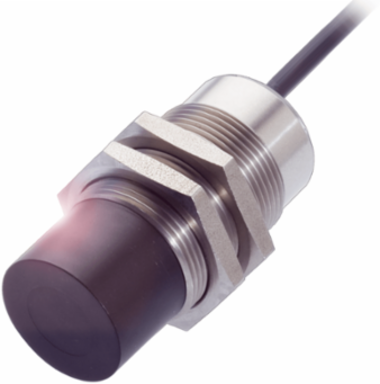

Balluff BCS M30B4E1-NOC25H-EP02 Capacitive Level Sensor, Ø 30 x 66.5 mm, 10-30 VDC, IP67
- MPN: BCS M30B4E1-NOC25H-EP02
- PPN: BAL-BCS00N9
CAD
$304.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Switching Frequency
- 100 Hz
- Rated Operating Current
- 100 mA
- Voltage Drop Static Max.
- 1.5 V
- Ready Delay Max.
- 300 ms
- Rated Operating Voltage
- 24 V DC
- Measuring Range
- 1 to 25 mm
- Hysteresis Max.
- 15 % of Sr
- Switching Output
- NPN Normally closed (NC)
- Thread
- M30x1.5
- Tightening Torque
- 90 Nm
- Housing Material
- Stainless steel (1.4305)
- Material Cover
- PBT, PA
- Number of Conductors
- 3
- Cable Diameter
- 4.60 mm
- IP Rating
- IP67
- Compliance
- CE, cULus, WEEE
- MTTF (40 6C)
- 226 a
Range1-25 mm
Ambient Temperature-25 to 85 6C
No-load Current15 mA
Rated Insulation Voltage75 V DC
Ripple Max.10 % of Ue
Operating Distance25 mm
Repeat Accuracy Max.2 % of Sr
Temperature Drift Max.20 % of Sr [-5 to 55 6C]
Dimension0d8 30 x 66.5 mm
ConnectionCable, 2 m, PUR
Material Sensing SurfacePBT
Material JacketPUR
InstallationNon-flush
Conductor Cross-Section0.34 mmb2
Cable Length2 m
SeriesM30
SensitivitySwitching distance adjustable
