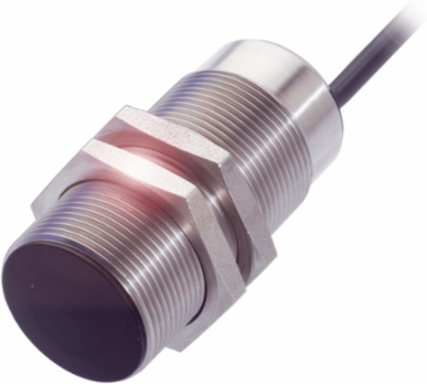

Balluff BCS M30B4I1-POC15D-EP02 Capacitive Sensor 30 x 65.5 mm, 10-30 VDC, IP67, 2-15 mm Range
- MPN: BCS M30B4I1-POC15D-EP02
- PPN: BAL-BCS00N3
CAD
$304.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| Measuring Range | 2-15 mm |
| Operating Temperature Range | -25 to 85 B0C |
| Dimension | 30 x 65.5 mm |
| Material Sensing Surface | PBT |
| IP Rating | IP67 |
| Approval/Conformity | CE, cULus, WEEE |
| Sensitivity | Switching distance adjustable |
| Switching Frequency | 100 Hz |
|---|---|
| Switching Output | PNP normally closed (NC) |
| Thread Size | M30x1.5 |
| Connection | Cable, 2 m, PUR |
| Material Housing | Stainless steel (1.4305) |
| Installation | for flush mounting |
| Series | M30 |
