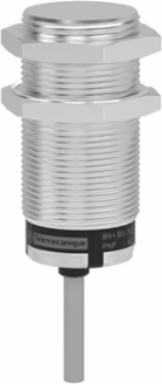

Telemecanique Sensors XT530B1PAL2 Capacitive sensor, XT5, M30, brass, Sn 10 mm, PNP, cable 2 m
- MPN: XT530B1PAL2
- PPN: TES-XT530B1PAL2
CAD
$404.35
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensor, XT5, M30, brass, Sn 10 mm, PNP, cable 2 m
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| ISO thread | M30 x 1.5 |
|---|---|
| Front material | PBT |
| Repeat accuracy | < 0.1 x Sr |
| Status LED | Output state indication: 1 LED (yellow), power status: 1 LED (green) |
| Protection type | Short-circuit protection |
| Voltage drop | <2.5 V (closed) |
| Delay first up | 300 ms |
| Marking | CE |
| Detection face | Frontal |
|---|---|
| Differential travel | < 0.2 x Sr |
| Wire insulation material | PVC |
| Residual current | 0.1 mA open state |
| Switching frequency | <= 25 Hz |
| Current consumption | < 15 mA |
| Delay recovery | 15 ms |
| Setting-up | Sensitivity by potentiometer |
Main
| Product or component type | Sensor |
|---|---|
| Product specific application | Detection of insulated or conductive materials |
| Sensor design | Cylindrical M30 |
| Body type | Fixed |
| Material | Metal |
| Type of output signal | Discrete |
| Discrete output function | 1 NO |
| Discrete output type | PNP |
| Rated supply voltage (Us) | 24 V DC with reverse polarity protection |
| IP degree of protection | IP67 conforming to IEC 60529, IP65 conforming to IEC 60529 |
| Sensor type | Capacitive proximity sensor |
|---|---|
| Sensor name | XT5 |
| Size | 64 mm |
| Detector flush mounting acceptance | Flush mountable |
| Enclosure material | Nickel plated brass |
| Wiring technique | 3-wire |
| Output circuit type | DC |
| Electrical connection | Cable |
| Delay response | 15 ms |
Environment
| Standards | IEC 60947-5-2 UL 61010-1 |
|---|---|
| Vibration resistance | 10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Electrical insulation class | Class III conforming to IEC 61140 |
| Product certifications | cULus |
|---|---|
| Shock resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
