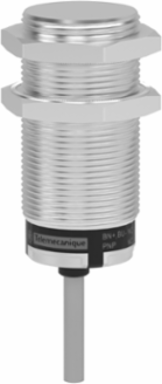

Telemecanique Sensors XT530B1FBL2 Capacitive sensor, XT5, M30, brass, Sn 10 mm, cable 2 m, 24...240 VAC/DC, discrete output function 1 NC

MPN: XT530B1FBL2
PPN: TES-XT530B1FBL2

$489.13

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Capacitive sensor, XT5, M30, brass, Sn 10 mm, cable 2 m, 24...240 VAC/DC, discrete output function 1 NC

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

ISO thread	M30 x 1.5
Differential travel	< 0.2 x Sr
Wire insulation material	PVC
Residual current	5 mA open state
Voltage drop	<10 V (closed)
Delay first up	200 ms
Marking	CE

Detection face	Frontal
Repeat accuracy	< 0.1 x Sr
Status LED	Output state indication: 1 LED (yellow), power status: 1 LED (green)
Switching frequency	<= 10 Hz
Current consumption	< 3 mA
Delay recovery	30 ms
Setting-up	Sensitivity by potentiometer

Main

Sensor type	Capacitive proximity sensor
Sensor name	XT5
Size	64 mm
Detector flush mounting acceptance	Flush mountable
Enclosure material	Nickel plated brass
Wiring technique	2-wire
Output circuit type	AC
Rated supply voltage (Us)	24...240 V AC 50...60 Hz
IP degree of protection	IP67 conforming to IEC 60529, IP65 conforming to IEC 60529

Product specific application	Detection of insulated or conductive materials
Sensor design	Cylindrical M30
Body type	Fixed
Material	Metal
Type of output signal	Discrete
Discrete output function	1 NC
Electrical connection	Cable
Delay response	30 ms

Environment

Standards	IEC 60947-5-2 UL 61010-1
Vibration resistance	10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Electrical insulation class	Class I conforming to IEC 61140
