Telemecanique Capacitive proximity sensors XT, cylindrical M30, plastic, Sn 15 mm, 24...240 V AC

Documentation & Downloads

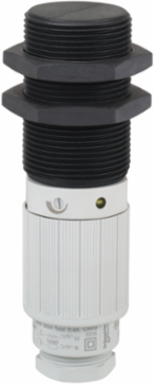

Telemecanique Sensors XT230A2MDB Telemecanique Capacitive proximity sensors XT, cylindrical M30, plastic, Sn 15 mm, 24...240 V AC

MPN: XT230A2MDB
PPN: TES-XT230A2MDB
UNSPSC: 39122230

CAD

$481.68

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The XT offer is a range of capacitive proximity sensors, dedicated to the detection of insulated or conductive materials. These sensors are suitable for the detection of any object irrespective of material or conductivity. This sensor features a cylindrical plastic case, diameter 30mm, threaded M30 x 1.5 and screw terminals. It is suited to automatic feed systems for livestock. It is non flush mountable with an adjustable sensing distance of 0mm to 15mm. 2-wire, 24V to 240V DC or 24V AC, with NO or NC selectable function. Output state indication by a yellow LED. This sensor enables detection of the level of all types of feed, pellets, grains, powders, etc. This sensor complies with CE and cETLus certifications, and with IEC 60947-5-2 and UL 61010-1 standards. A threaded sleeve XTAZ30 and a 90° fixing bracket XXZ30, to be ordered separatly, are available to facilitate the mounting and protection of this sensor.

Documentation & Downloads

Specifications

Key Specifications

Electrical Connection: screw clamp terminal

Maximum Delay Response: 10 ms

Range Of Product: Telemecanique Capacitive proximity sensors XT

Material: plastic

Wiring Technique: 2-wire

Body Type: fixed

Product Specific Application: animal feeding || detection of insulated or conductive materials

Detector Flush Mounting Acceptance: non flush mountable

Enclosure Material: Plastic

[Us] Rated Supply Voltage: 24...240 V AC 50...60 Hz

Discrete Output Function1 NO or 1 NC programmable

Type Of Output Signaldiscrete

Sensor NameXT2

Size100 mm

Ip Degree Of ProtectionIP65 conforming to IEC 60529

[Sn] Nominal Sensing Distance15 mm

Sensor Typecapacitive proximity sensor

Sensor Designcylindrical M30

Output Circuit TypeAC || DC

Complementary

Iso Thread: M30 x 1.5

Status Led: output state indication 1 LED yellow)

Repeat Accuracy: < 5 % Sr

Maximum Voltage Drop: <2 V closed)

Threaded Length: 45 mm

Length: 100 mm

Maximum Residual Current: 120 mA open state

Differential Travel: < 1...15 % Sr

[Sa] Assured Operating Distance: 0-11 mm

Supply Voltage Limits: 20-265 V AC

Adjustment Zone: 0-17 mm

Current Consumption< 3 mA

Setting-Upsensitivity by potentiometer

Cable Entry1 entry incorporating cable gland 7-13 mm

Maximum Switching Current300 mA

MarkingCE

Net Weight0.1 kg

Switching Frequency<= 40 Hz

Maximum Delay Recovery10 ms

Maximum Delay First Up100 ms

Detection Facefrontal

Environment

Product Certifications: cULus

Resistance To Electromagnetic Fields: 3 V/m IEC 61000-4-3

Vibration Resistance: 10 gn 1 mm 10-55 Hz)IEC 60068-2-6

Electrical Insulation Class: class I

Resistance To Electrostatic Discharge: 4 kV contact IEC 61000-4-2 || 8 kV air IEC 61000-4-2

Ambient Air Temperature For Operation-20-70 °C

StandardsEN/IEC 60947-5-2 || UL 61010-1

Shock Resistance30 gn 11 ms IEC 60068-2-27

Ambient Air Temperature For Storage-40-85 °C

Resistance To Fast Transients2 kV IEC 61000-4-4

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Toxic Heavy Metal Free: Yes

California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
