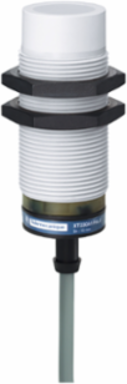

Telemecanique Sensors XT230A1PAL2 Capacitive sensor, XT, M30, plastic, Sn 15 mm, PNP, NO, cable 2 m, 12...24 VDC, non-flush, 3 wires

MPN: XT230A1PAL2
PPN: TES-XT230A1PAL2

$368.95

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Capacitive sensor, XT, M30, plastic, Sn 15 mm, PNP, NO, cable 2 m, 12...24 VDC, non-flush, 3 wires

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

ISO thread	M30 x 1.5
Differential travel	< 1...20 % Sr
Wire insulation material	PVC
Residual current	100 mA open state
Voltage drop	<2.5 V (closed)
Delay first up	100 ms
Marking	CE

Detection face	Frontal
Repeat accuracy	< 5 % Sr
Status LED	Output state indication: 1 LED (yellow)
Switching frequency	<= 150 Hz
Current consumption	< 15 mA
Delay recovery	10 ms
Setting-up	Sensitivity by potentiometer

Main

Sensor type	Capacitive proximity sensor
Sensor name	XT2
Size	74.5 mm
Detector flush mounting acceptance	Non flush mountable
Enclosure material	Plastic
Wiring technique	3-wire
Output circuit type	DC
Rated supply voltage (Us)	12...24 V DC with reverse polarity protection
IP degree of protection	IP67 double insulation conforming to IEC 60529

Product specific application	Detection of insulated or conductive materials
Sensor design	Cylindrical M30
Body type	Fixed
Material	Plastic
Type of output signal	Discrete
Discrete output function	1 NO
Electrical connection	Cable
Delay response	10 ms
