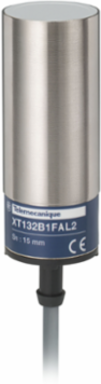

Telemecanique Sensors XT132B1FAL2 Capacitive sensor, XT, Ø32, brass, Sn 15 mm, NO, cable 2 m, 24...240 VAC, flush, 2 wires

MPN: XT132B1FAL2
PPN: TES-XT132B1FAL2

$509.63

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Capacitive sensor, XT, Ø32, brass, Sn 15 mm, NO, cable 2 m, 24...240 VAC, flush, 2 wires

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Detection face	Frontal
Repeat accuracy	< 0.15 x Sr
Status LED	Output state indication: 1 LED (yellow)
Switching frequency	<= 15 Hz
Current consumption	< 4 mA
Delay recovery	30 ms
Setting-up	Sensitivity by potentiometer

Differential travel	< 0.2 x Sr
Wire insulation material	PVC
Residual current	5 mA open state
Voltage drop	<10 V (closed)
Delay first up	200 ms
Marking	CE

Main

Sensor type	Capacitive proximity sensor
Sensor name	XT1
Size	80 mm
Detector flush mounting acceptance	Flush mountable
Enclosure material	Nickel plated brass
Wiring technique	2-wire
Output circuit type	AC
Rated supply voltage (Us)	24...240 V AC 50...60 Hz
IP degree of protection	IP67 conforming to IEC 60529, IP67 conforming to IEC 60947-5-2

Product specific application	Detection of insulated or conductive materials
Sensor design	Cylindrical Ø 32 mm plain
Body type	Fixed
Material	Metal
Type of output signal	Discrete
Discrete output function	1 NO
Electrical connection	Cable
Delay response	30 ms
