Balluff

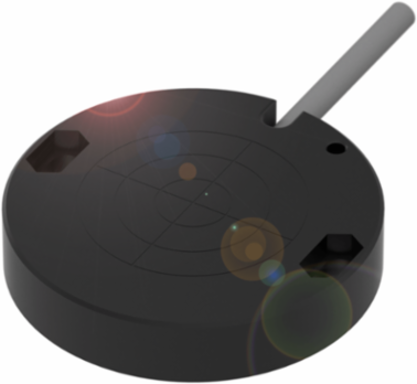

Balluff BCS D50OO04-PPCFAC-EV02 Capacitive Level Sensor, Ø 50 x 10 mm, POM, 10-35 VDC, IP67

Capacitive Level Sensor, Ø 50 x 10 mm, POM, 10-35 VDC, IP67
  • MPN: BCS D50OO04-PPCFAC-EV02
  • PPN: BAL-BCS0084

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$260.36/ EA

Description

These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected through glass and plastic walls with their active surface and without contact.

Specifications

Specifications

Dimension
Ø 50 x 10 mm
Installation
flush with container outer wall
Switching output
PNP NO/NC programmable
Sensitivity
media-dependent, adjustable
Additional features
Electrically conductive media, Foam and residue compensation
Material sensing surface
POM
Operating voltage Ub
10-35 VDC
IP rating
IP67
SeriesD50
ConnectionCable, 2.00 m, PVC
Switching frequency2 Hz
FunctionSmart Level 15
Housing materialPOM
Ambient temperature-10-60 °C
Approval/ConformityCE, cULus, WEEE
