Balluff

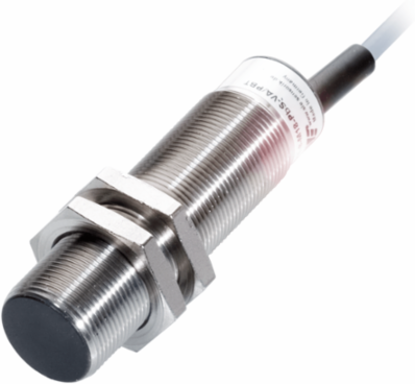

Balluff BCS M18B4M-NSC80C-EV02 Capacitive Sensor, Ø 18 x 65 mm, PBT, IP67, 10-35 VDC

Capacitive Sensor, Ø 18 x 65 mm, PBT, IP67, 10-35 VDC
  • MPN: BCS M18B4M-NSC80C-EV02
  • PPN: BAL-BCS0044

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$260.36/ EA

Description

Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).

Specifications

Specifications

Dimension
Ø 18 x 65 mm
Thread (A)
M18x1
Connection
Cable, 2.00 m, PVC
Switching frequency
100 Hz
Housing material
Stainless steel (1.4301)
Ambient temperature
-30-70 °C
Approval/Conformity
CE, cULus, WEEE
SeriesM18
Installationfor flush mounting
Switching outputNPN Normally open (NO)
Range2-8 mm
Material sensing surfacePBT
Operating voltage Ub10-35 VDC
IP ratingIP67
