Balluff

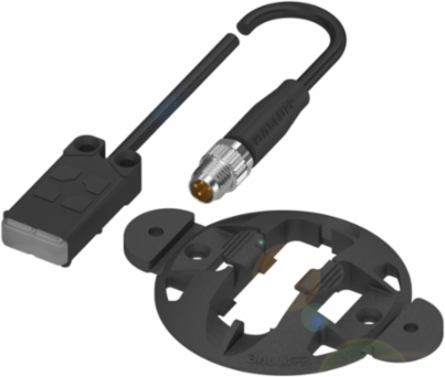

Balluff BCS R08RRE-NSMFHC-EP00,3-GS75 Capacitive Level Sensor, 34 x 16 x 8 mm, IP67, NPN Output

Capacitive Level Sensor, 34 x 16 x 8 mm, IP67, NPN Output
  • MPN: BCS R08RRE-NSMFHC-EP00,3-GS75
  • PPN: BAL-BCS0131

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$296.82/ EA

Description

These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected through glass and plastic walls with their active surface and without contact.

Specifications

Specifications

Dimension
34 x 16 x 8 mm
Installation
flush with container outer wall
Switching output
NPN Normally open (NO)
Sensitivity
teachable depending on media
Additional features
Electrically conductive media, Foam and residue compensation
Material sensing surface
PP
Operating voltage Ub
12-30 VDC
IP rating
IP67
SeriesR08
ConnectionCable with connector, M8x1-Male, 4-pin, 0.30 m, PUR
Switching frequency10 Hz
FunctionSmart Level 50
Housing materialPP
Ambient temperature-25-70 °C
Approval/ConformitycULus, CE, WEEE
