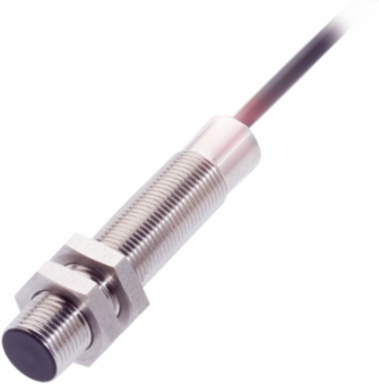

Balluff BCS M12B4I1-NOC40D-EP02 Capacitive Sensor, Ø 12 x 61 mm, 1-4 mm Sensing Range, IP67, M12 Connection

Capacitive Sensor, Ø 12 x 61 mm, 1-4 mm Sensing Range, IP67, M12 Connection
  • MPN: BCS M12B4I1-NOC40D-EP02
  • PPN: BAL-BCS00PA

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$278.77/ EA

Description

Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).

Specifications

Specifications

Dimension
Ø 12 x 61 mm
Thread (A)
M12x1
Connection
Cable, 2.00 m, PUR
Switching frequency
100 Hz
Sensitivity
Switching distance adjustable
Material sensing surface
PBT
Operating voltage Ub
10-30 VDC
IP rating
IP67
SeriesM12
Installationfor flush mounting
Switching outputNPN Normally closed (NC)
Range1-4 mm
Housing materialStainless steel (1.4305)
Ambient temperature-25-85 °C
Approval/ConformityCE, cULus, WEEE
