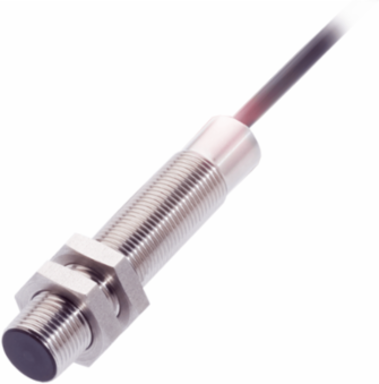

Balluff BCS M12B4I1-PSC40D-EP02 Capacitive Sensor, 12 x 61 mm, 1-4 mm Range, IP67, M12x1
- MPN: BCS M12B4I1-PSC40D-EP02
- PPN: BAL-BCS00R4
CAD
$207.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Switching Distance | Adjustable |
|---|---|
| Switching Output | PNP Normally open (NO) |
| Range | 1-4 mm |
| Thread Size | M12x1 |
| Housing Material | Stainless steel (1.4305) |
| Ambient Temperature Range | -25 to 85 C |
| Compliance | CE, cULus, WEEE |
| Installation | For flush mounting |
| Operating Voltage | 10-30 VDC |
|---|---|
| Switching Frequency | 100 Hz |
| Dimension | 12 x 61 mm |
| Connection | Cable, 2.00 m, PUR |
| Material Sensing Surface | PBT |
| IP Rating | IP67 |
| Series | M12 |
