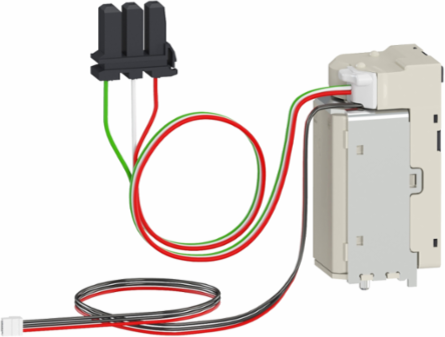

Schneider Electric LV836671SP MN undervoltage release, MasterPact MTZ1/2/3, diagnostics and communicating, 200/250VAC 50/60Hz, 200/250VDC, spare part
- MPN: LV836671SP
- PPN: SCH-LV836671SP
CAD
$550.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
MN undervoltage release, MasterPact MTZ1/2/3, diagnostics and communicating, 200/250VAC 50/60Hz, 200/250VDC, spare part
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Important Information Attributes
- Persona Type Ids
- LC, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operating Time
- 45 ms on opening MasterPact MTZ195 ms on opening MasterPact MTZ2, 95 ms on opening MasterPact MTZ3
- [Uc] Control Circuit Voltage
- 200...250 V AC 50/60 Hz, 200...250 V DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.4481508139534883
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 17 kg CO2 eq., 16.71875581395349
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Use Carbon Footprint
- 161.57
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311021EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1943
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Control Type
- communicating
- Device Short Name
- MN diag
- Mounting Mode
- fixed/drawout
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Provided Equipment
- 1 instruction sheet
- Returnability
- No
- Supply Holding Power
- 4.5 W
- Threshold Tripping Voltage
- 0.35...0.7 Un opening0.85 Un closing
- Voltage Release Type
- instantaneous
- Pep Code
- ENVPEP2311021EN
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 68
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 161.57
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 1740
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 240.23
- Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
- 1.5738
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 790.44
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 790.44
Persona Type NamesContractor, Panel Builder
Market SegmentationCommercial, Industrial
Signalling FunctionMN open, coil powered, error
Carbon Footprint Of The Distribution Phase [A4]0.030599581395348838, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.034059244186046514, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]162 kg CO2 eq., 161.57
Local Publishable Date2024-01-12
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationsafety
Energy Efficiency OptimizedFalse
Offer Typespare part
Product Or Component Typeundervoltage release
RangeMasterPact
Software Versionv5.9.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint179 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe MN release instantaneously opens the circuit breaker when energized, the minimum duration of the pulse operating order must be 200 ms. Service duration: 10 years& 10It complies with IEC 60947-2 standard.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh394.2
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)234.000 g
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]161.35
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]4116.3
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]3.2148
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]23.246
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]4906.7
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]4116.3
Water Use (M3 Eq) Operational Energy Use [B6]5.717
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Carbon Footprint
- 178.80156545348837
- Environmental Disclosure
- ENVPEP2311021EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2311021EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Silicon FreeNo
Circularity ProfileENVEOLI2311021EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- undervoltage release
Provided Equipment1 instruction sheet
ETIM
- ETIM 8
- EC001022
ETIM 9EC001022
