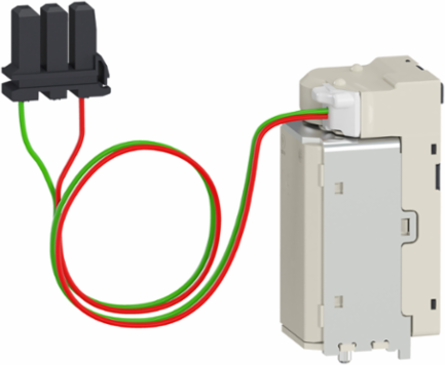

Square D S33669 PowerPact Undervoltage Trip 48-60V AC/DC, Torque 3.5 N.m

MPN: S33669
PPN: SCH-S33669
UNSPSC: 39121601

$1333.18

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This undervoltage trip from Schneider Electric is designed to enhance the reliability and safety of your power distribution system. With a voltage range of 48-60V AC/DC, it effectively monitors electrical conditions and can trigger disconnection during low voltage scenarios, preventing potential damage to connected equipment. The included torque specification of 3.5 N.m ensures secure installation and optimal operation. This device is an essential component for molded case circuit breakers, making it a vital choice for maintaining stable and efficient circuit performance in your industrial applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Weight	172 g

Complementary Attributes

Rated Voltage	48-60 V AC/DC60-60 V DC

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Range Of Product	PowerPact H, PowerPact J, PowerPact L
Carbon Footprint Of The Distribution Phase A4	0.022492, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.025035, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	162 kg CO2 eq., 161.57
Local Publishable Date	2026-09-05
Serviceability	No
Field Service Division	PPIBS
Use Carbon Footprint	161.57
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2311021EN
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Energy Efficiency Optimized	False
Product Or Component Type	undervoltage trip
Software Version	v5.9.4
Tightening Torque	3.5-3.5 N.m
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Pep End Of Validity Date Calculated	2028-12-03

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	IEC, UL
Carbon Footprint Of The End Of Life Phase C1 To C4	0.3 kg CO2 eq., 0.32941
Carbon Footprint Of The Manufacturing Phase A1 To A3	12 kg CO2 eq., 12.289
Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Manufacturing Carbon Footprint	12.289
Weee Scope	Out
Eoli Availability Display	Yes
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1912
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	Yes
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	174 kg CO2 eq.
Data Source	extrapolated product
Customs Code	8504508000
Functional Unit Description	The MN release instantaneously opens the circuit breaker when energized, the minimum duration of the pulse operating order must be 200 ms. Service duration: 10 years& 10It complies with IEC 60947-2 standard.
Functional Unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	394.2

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	174.23593699999998
Environmental Disclosure	ENVPEP2311021EN
Packaging Made With Recycled Cardboard	Yes
Pep Code	ENVPEP2311021EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
Mercury Free	Yes
Circularity Profile	ENVEOLI2311021EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Pep Verification Date	2023-12-03
Psr Version	PSR-0005-ed2-2016 03 29
