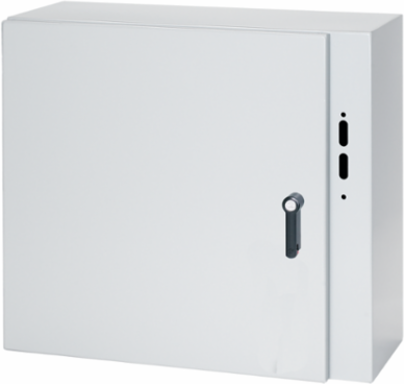

nVent Hoffman CDSC302610SS Concept Wallmount Disconnect Enclosure 30x26x10 Inch, Brushed SS304, NEMA 4X
- MPN: CDSC302610SS
- UPC: 783510346331
- PPN: HOF-CDSC302610SS
- UNSPSC: 39121324
CAD
$4422.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Concept stainless steel enclosure for indoor/outdoor use with 3pt latching and disconnect mounting. This Concept Wallmount Disconnect Enclosure 3Pt Latch, CDSC302610SS item measures 30x26x10 inch with a material of SS304 finish Brushed.
Features
- Disconnect model of Concept enclosure series, includes 3 point latching for closure.
- Seams continuously welded and ground smooth
- External-formed 90-degree body flange
- Integral door ramp to properly align door and gasket to body flange
- Holes provided in right-hand flange are for mounting disconnect operating handle and operating mechanism
- Panel mounting studs fit optional Concept panels and other accessories (purchase panels separately)
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Standard full-access door opening
- Corner formed doors are interchangeable and easily removable by pulling captive hinge pins
- Provisions on door for optional high-impact thermoplastic data pocket
- Seamless foam-in-place gasket
- Three-point door latching system installed on door interlocks with disconnect handle for added safety
- Adjustable door interlock bracket fastened to door
- Unique integrated door handle with tool-to-open feature and padlock option installed on door
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
Documentation & Downloads
Specifications
Additional
- IP Rating
- IP66
- Material
- Type 304 Stainless Steel
- Weight
- 64
- Width (W)
- 660 mm
- Thickness (T)
- 1.98 mm
- Body and Door Thickness
- 14 gauge
- Door Latching System
- Three-point door latching
- Gasket Type
- Seamless foam-in-place gasket
- Handle Type
- Integrated door handle with tool-to-open and padlock option
- Operating Handle Mounting
- Holes in right-hand flange
- Latch System
- Self-grounding latch system with double seal
- Door Opening
- Standard full-access door opening
- Door
- Corner formed, interchangeable, removable by pulling captive hinge pins
- BABA
- Yes, BABA Compliant
Protection RatingNEMA 4X Watertight, corrosion-resistant
FinishBrushed #4
Height (H)762 mm
Depth (D)254 mm
Mounting (G x H)724 x 622
Dimensions30 x 26 x 10 in
Door InterlockAdjustable door interlock bracket fastened to door
HingesStainless steel hidden hinges
Mounting HolesIn back of body for direct mounting or external mounting brackets
ConstructionSeams continuously welded and ground smooth, external-formed 90-degree body flange
Bonding ProvisionOn door; grounding stud on body
Panel Mounting StudsFit optional Concept panels and other accessories
Optional FeatureProvisions for high-impact thermoplastic data pocket on door
Product FamilyConcept
