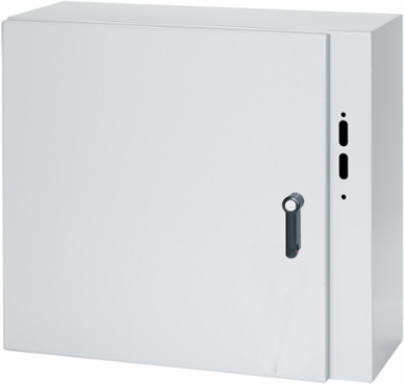

nVent Hoffman CDSC302610SS6 Concept Wallmount Disconnect Enclosure 30x26x10 Inch, SS316, IP66, NEMA 4X
- MPN: CDSC302610SS6
- UPC: 783510346324
- PPN: HOF-CDSC302610SS6
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Concept stainless steel enclosure for indoor/outdoor use with 3pt latching and disconnect mounting. This Concept Wallmount Disconnect Enclosure 3Pt Latch, CDSC302610SS6 item measures 30x26x10 inch with a material of SS316 finish Brushed.
Features
- Disconnect model of Concept enclosure series, includes 3 point latching for closure.
- Seams continuously welded and ground smooth
- External-formed 90-degree body flange
- Integral door ramp to properly align door and gasket to body flange
- Holes provided in right-hand flange are for mounting disconnect operating handle and operating mechanism
- Panel mounting studs fit optional Concept panels and other accessories (purchase panels separately)
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Standard full-access door opening
- Corner formed doors are interchangeable and easily removable by pulling captive hinge pins
- Provisions on door for optional high-impact thermoplastic data pocket
- Seamless foam-in-place gasket
- Three-point door latching system installed on door interlocks with disconnect handle for added safety
- Adjustable door interlock bracket fastened to door
- Unique integrated door handle with tool-to-open feature and padlock option installed on door
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 660
- Protection Rating
- NEMA Type 4X
- Material
- Stainless Steel 316L
- Thickness (T)
- 1.98
- IP Rating
- IP66
- Weight
- 65
Height (H)762
Depth (D)254
Product FamilyConcept
FinishBrushed #4
Mounting (G x H)724 x 622
NEMA Rating4X Watertight, corrosion-resistant
