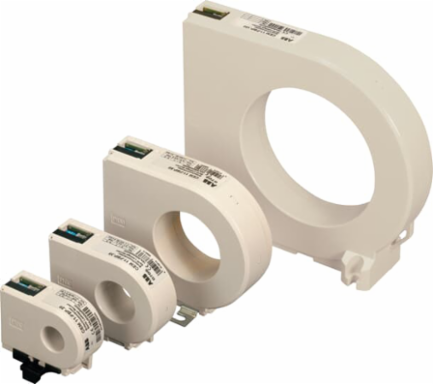

ABB 1SAJ929200R0035 CEM11-FBP.35 Earth Leakage Monitor 35 mm Ø, setting 0.1 ... 3.4 A

MPN: 1SAJ929200R0035
UPC: 804325361347
PPN: ABB-1SAJ929200R0035
UNSPSC: 41113645

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$733.80/ EA

Qty:

Loading add to cart quantity...

Description

CEM11-FBP.35 Earth Leakage Monitor features a 35 mm diameter through hole. A threshold can be set, upon violation of this threshold a binary signal is outputted.

Specifications

Dimensions

Product Net Width: 100 mm

Product Net Height: 31 mm

Product Net Depth / Length79 mm

Product Net Weight200 g

Technical

Connecting Capacity: 1x 0.75-1.5 mm²

Mounting Type: DIN-Rail with Adapter

Power Loss: Approximately 0.2 W

Rated Frequency (f): Main Circuit 50 / 60 Hz

Setting Range: 0.1 ... 3.4 A

Suitable For: UMC100-FBPUMC100.3

Tightening Torque: Auxiliary Circuit 0.6 ... 1 N·mControl Circuit 0.6 ... 1 N·m

Mounting PositionAny

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Rated Control Supply Voltage (Us)24 V DC

Recommended Screw DriverPozidriv 1

StandardsIEC/EN 60947-1IEC/EN 60947-4-1

Suitable for Product ClassUniversal Motor Controllers

Wire Stripping Length7 mm

Classifications

eClass: V11.0 : 27242608

IDEA Granular Category Code (IGCC): 6312 >> Earth leakage devices

ETIM 9EC001604 - Fieldbus, decentr. periphery - communication module

Object Classification CodeB

Environmental

Degree of Protection: IP20

WEEE B2C / B2B: Business To Business

RoHS Information1SVD981041-0001

WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Technical UL/CSA

Connecting Capacity UL/CSA: Flexible with Ferrule 1x 18-16 AWGRigid 1x 18-16 AWG

Ordering

Minimum Order Quantity: 1 piece

Product Main Type: CEM11-FBP

Customs Tariff Number85043129
