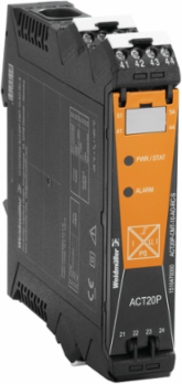

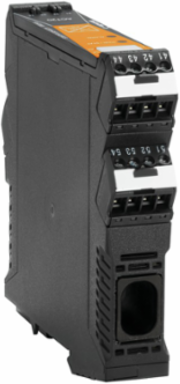

Weidmuller 1510280000 ACT20P Current Monitoring Relay, 0-60 A AC/DC, 3-Way Isolation, 0.898 Inch Width
Weidmuller 1510280000 ACT20P Current Monitoring Relay, 0-60 A AC/DC, 3-Way Isolation, 0.898 Inch Width
- MPN: 1510280000
- PPN: WDM-1510280000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$399.06/ EA
Description
Limit value monitoring, Signal converter/isolator, Current monitoring, PUSH IN connection, Input measurement range: configurable, 0…40/50/60 A AC or DC
Specifications
General Data
- Accuracy
- < 0.75 % FSR
- Galvanic isolation
- 3-way isolator, between input ⁄ output ⁄ supply
- Rail
- TS 35
- Temperature coefficient
- 0.01%/K @ 0...40 A, 0.10%/K @ 40...55 A, 0.30%/K @ 55...60 A

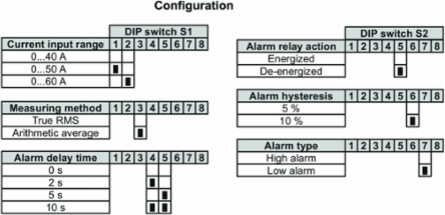

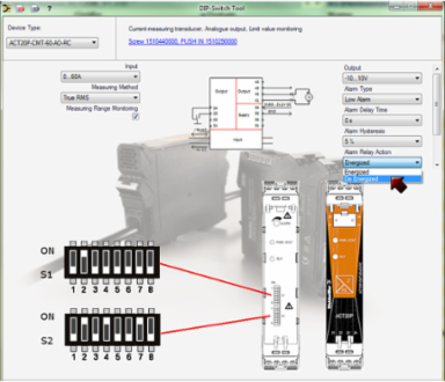

ConfigurationDIP switch and potentiometer
Power consumption, max.2.2 W
Step response time≤ 300 ms (RMS), ≤ 60 ms (AA)
Voltage supply16,8 V…31,2 V
Approvals
- ROHS
- Conform
UL File Number SearchE141197

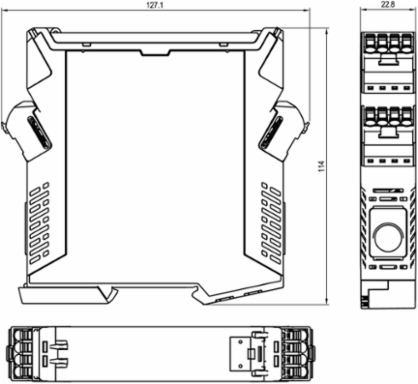

Dimensions And Weights
- Width
- 22.8 mm
- Height
- 127.1 mm
- Depth
- 114 mm
- Net weight
- 158 g
Width (inches)0.898 inch
Height (inches)5.004 inch
Depth (inches)4.488 inch
Output (Digital)
- Alarm function

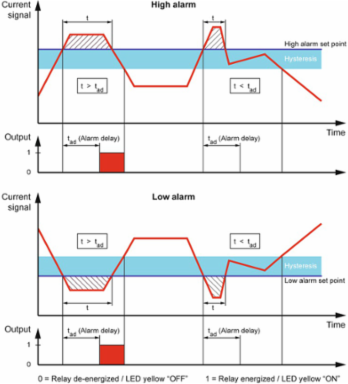

- Surge current, Under-current, Alarm delay: 0...10 s, Hysteresis 5% / 10%
- Type
- Relay, 1 CO contact, normal / inverse adjustment
- Max. switching voltage, AC
- 250 V
Number of digital outputs1
Max. switching voltage, DC24 V
Rated switching current6 A

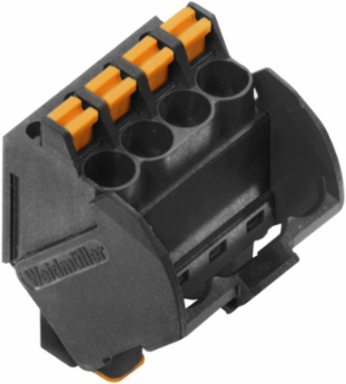

Connection Data
- Type of connection

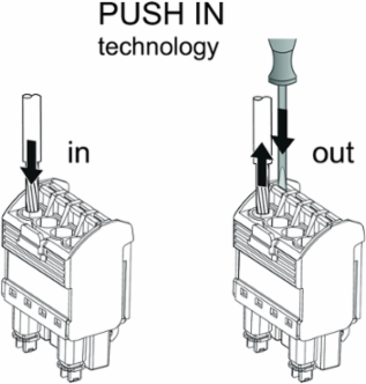

- PUSH IN
- Wire connection cross section AWG, max.
- AWG 14
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
Wire connection cross section AWG, min.AWG 26
Wire cross-section, solid, min.0.2 mm²
Wire connection cross-section, finely stranded, min.0.2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.2 mm²
Input
- Number of inputs
- 1
- Input measurement range
- configurable, 0…40/50/60 A AC or DC

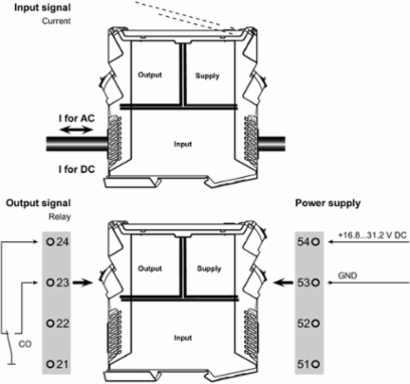

Input signalCurrent-carrying cable in feed-through hole, Diameter 10.5 mm
Input frequencyAC: 15…700 Hz (true root mean square), AC: 50 Hz (arithmetic average)
Classifications
- ETIM 6.0
- EC002475
- eClass 9.0
- 27-21-01-23
- eClass 10.0
- 27-21-01-23
ETIM 7.0EC002475
eClass 9.127-21-01-23
Product Information
- Product information
- The ACT20P-CMT-XX-(AO)-RC-P series of devices measure and monitor AC and DC currents of up to 60 A. The real effective value method used allows for precise measurement, even for distorted current curve shapes. The devices feature integrated limit value monitoring with an adjustable switching threshold, delay and hysteresis, as well as a relay output.. Features Real effective value measurement (True RMS) or arithmetic averaging (AA) measurement and contactless through-hole technology Limit value monitoring for overcurrent or undercurrent Relay output by means of the open-circuit / closed-circuit principle Adjustable trigger delay for filtering current peaks Operational status and error display on a front panel LED and output signalling according to NE43, NE44, NE107 Galvanic four-way insulation for secure isolation according to IEC/EN 61010-2-201
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- IEC 61326-1, IEC 61010-2-201
- Impulse withstand voltage
- 6.4 kV (1.2/50 µs)
- Rated voltage
- 300 V ACrms
Galvanic isolation3-way isolator, between input ⁄ output ⁄ supply
Insulation voltage4 kVeff / 1 min.
Surge voltage categoryIII
Temperatures
- Humidity
- 5...95 %, no condensation
- Operating temperature, min.
- -25 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-25 °C...60 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E141197
