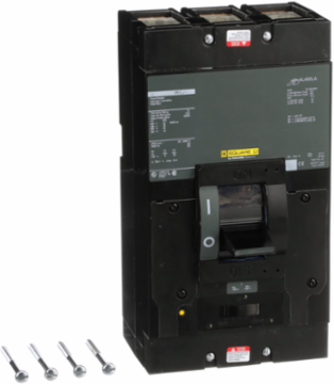

Square D LAL36125 Circuit Breaker 125A 3-Pole 600VAC 22kA Thermal-Magnetic

MPN: LAL36125
UPC: 785901848400
PPN: SCH-LAL36125

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric LAL36125 Circuit Breaker is a robust solution for power distribution, designed to ensure reliable performance in demanding applications. With a current rating of 125A and a three-pole configuration, this thermal-magnetic circuit breaker is capable of managing voltages up to 600VAC while providing a short-circuit interrupting capacity of 22kA. Its advanced thermal-magnetic design offers both efficient overload protection and fault protection, making it an essential component for ensuring safety and reliability in industrial settings.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

Depth	5.84 in

Complementary Attributes

Line Rated Current	125 A

Important Information Attributes

Persona Type Ids	LC, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	lugs, load, lugs, line
Certificate Agency	IEC, CSA, UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]	12 kg CO2 eq., 11.67639778652332
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	50 kg CO2 eq., 49.671357924070975
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	Yes
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2206029_V2
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1906
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Circuit Breaker Application	HACR rated
Magnetic Hold Current	625 A
Mounting Mode	unit mount
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	Yes
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	805 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	58
Width Nominal	6 in
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536200020

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Tightening Torque	13-13 N.m 42-304 mm² (1 AWG...600 kcmil), 13-13 N.m 42-127 mm² (1 AWG...250 kcmil)
Carbon Footprint Of The Distribution Phase [A4]	2.228383327123949, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	2.1496401101385745, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	739 kg CO2 eq., 739.3949682892573
Local Publishable Date	2025-11-13
Stocking Flag	Y
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Magnetic Tripping Current	1250-1250 A
Number Of Poles	3P
Product Or Component Type	circuit breaker
Software Version	v6.2.5-6
Terminal Identifier	AL400LA
Trip Unit Technology	thermal-magnetic
Pep Code	ENVPEP2206029EN
Pep Verification Date	2028-04-25
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	11 in
Halogen-free Status	Halogen free plastic parts product
Package Weight(Lbs)	7.215 kg
Warranty (In Months)	18

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2206029_V2
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2028-04-25
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Carbon Footprint	805.1207474371142
Environmental Disclosure	ENVPEP2206029EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2206029EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
