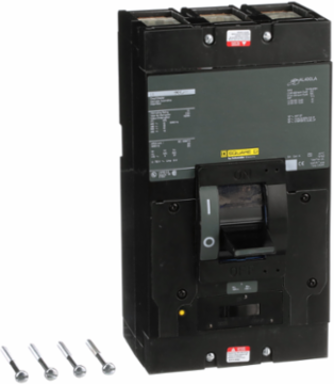

Square D LAL36150 Circuit Breaker, 150A, 3 Pole, 600VAC, Thermal-Magnetic, Halogen Free
- MPN: LAL36150
- UPC: 785901563228
- PPN: SCH-LAL36150
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Square D FA/LA Molded Case Circuit Breakers is designed to protect electrical systems from damage caused by overloads. For distribution systems supplied by transformers and distribution systems supplied by engine generator sets.
Documentation & Downloads
Specifications
Key Specifications
- Trip Unit Technology
- thermal-magnetic
Product Or Component Typecircuit breaker
Complementary
- Circuit Breaker Application
- HACR rated
- Height
- 11 in
- Tightening Torque
- 13-13 N.m 42-304 mm² AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² AWG 1...250 kcmil)
- Poles Description
- 3P
- Width
- 6 in
- Depth
- 5.84 in
Terminal IdentifierAL400LA
Mounting Modeunit mount
Magnetic Tripping Current1500-1500 A
[In] Rated Current150 A
Electrical Connectionlugs, load || lugs, line
Magnetic Hold Current750 A
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1410004EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product
Environment
- Product Certifications
- IEC || CSA || UL listed
