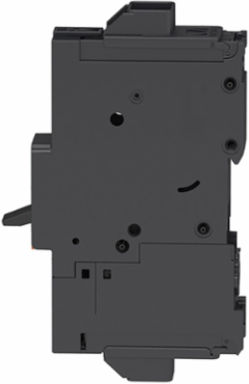

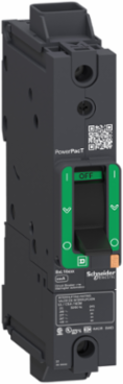

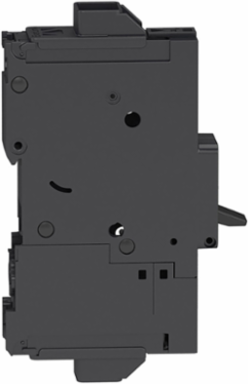

Schneider Electric BDL16080 PowerPact B Circuit Breaker, 80A, 1 Pole, 14kA, Halogen Free, IP40
Schneider Electric BDL16080 PowerPact B Circuit Breaker, 80A, 1 Pole, 14kA, Halogen Free, IP40
- MPN: BDL16080
- PPN: SCH-BDL16080
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$816.17/ EA
Description
PowerPact B-frame circuit breaker, offers proven performance, flexibility, and reliability. PowerPact B-frame circuit breaker, offers proven performance, flexibility, and reliability. PowerPact B-frame circuit breakers provides economical thermal magnetic circuit protection with a breaking capacity of 25kA at 220 / 240 VAC50/60 Hz. PowerPact B-frame circuit breakers come in 1 to 4-pole unit mount construction also 1 to 3-pole I-Line construction.
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1610005EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Mounting Mode
- clip-on 35 mm symmetrical DIN rail) || by screws plate)
- [Ics] Rated Service Breaking Capacity
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2
- Trip Unit Name
- TM-D
- Connection Pitch
- 27 mm
- Tightening Torque
- 5-5 N.m 2.5-16 mm² AWG 14...AWG 4) || 9-9 N.m 25-95 mm² AWG 3...AWG 3/0)
- 9 Mm Pitches
- 3
- Electrical Connection
- Everlink lug, line || Everlink lug, load
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Circuit Breaker Application
- HACR rated
- [In] Rated Current
- 80-80 A
- Continuous Current Rating
- 80 %
- [Ui] Rated Insulation Voltage
- 800 V IEC 60947-2
- Suitability For Isolation
- yes IEC 60947-2
- Poles Description
- 1P
- Awg Gauge
- AWG 6...AWG 2/0 fine stranded aluminum/copper || AWG 14...AWG 3/0 rigid or stranded aluminum/copper
- Width
- 27 mm
Network Frequency50/60 Hz
Trip Unit Technologythermal-magneticTM-D,
Height137 mm
[Ue] Rated Operational Voltage240 V AC 50/60 Hz UL 489
Breaking Capacity CodeD
Protected Poles Description1t
Net Weight0.51 kg
Control Typetoggle
Wire Stripping Length20 mm
Utilisation Categorycategory A
Breaking Capacity25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480Y/277 V AC 50/60 Hz UL 489 || 10 kA 125 V DC 50/60 Hz UL 489 || 14 kA 600/347 V AC 50/60 Hz UL 489
Mechanical Durability15000 cycles IEC 947-1 Annex F ed 5.2
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 In
Quantity Per Setset of 1
Colourgrey RAL 7016)
Depth80 mm
Environment
- Ik Degree Of Protection
- IK07 conforming to IEC 62262
- Standards
- GB 14048.2 || NMX J-266 || UL 489 || EN/IEC 60947-2 || CSA C22.2 No 5 || EN/IEC 60947-5-1 || NEMA AB1
- Ip Degree Of Protection
- front cover IP40 IEC 60529
- Ambient Air Temperature For Storage
- -50-85 °C
- Operating Altitude
- 2000 m without derating || 5000 m with derating
Ambient Air Temperature For Operation-25-70 °C
Product CertificationsUL || IEC || CCC || EAC || CSA || NOM
Pollution Degree3 IEC 60947-1
Quality LabelsCE
Specifications
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
- Device Short Name
- BD 080
Product NamePowerPact B
Device Applicationdistribution
