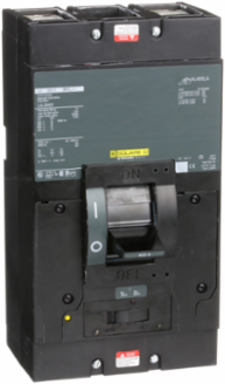

Square D LAL26400 PowerPact Circuit Breaker 400A 2 Pole 600VAC Thermal-Magnetic
Square D LAL26400 PowerPact Circuit Breaker 400A 2 Pole 600VAC Thermal-Magnetic
- MPN: LAL26400
- UPC: 785901426523
- PPN: SCH-LAL26400
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The PowerPact L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. L-frame circuit breakers are available with Micrologic electronic trip units only. The new generation PowerPact with Micrologic circuit breakers set the standard with direct access to energy management. Integrated metering enhances their protective functions. For the first time, Schneider Electric™ users can monitor energy from 15 to 3000A, offering new performance in a remarkably compact device. Electronic trip units provide highly accurate protection with wide setting ranges and can integrate measurement, metering and communication functions. They can be combined with the front display module (FDM121) to provide functions similar to a power meter. This 2P-pole circuit breaker has a 400A rated current. This breaker has a breaking capacity of 10 kA@250VDC operation voltage. This breaker has a thermal-magnetic trip technology. The dimensions are 11 in (H), 6 in (W), 5.84 in (D).
Specifications
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1410004EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product
Specifications
- Trip Unit Technology
- thermal-magnetic
Product Or Component Typecircuit breaker
Complementary
- Circuit Breaker Application
- HACR rated
- Height
- 11 in
- Tightening Torque
- 13-13 N.m 42-304 mm² AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² AWG 1...250 kcmil)
- Poles Description
- 2P
- Width
- 6 in
- Depth
- 5.84 in
Terminal IdentifierAL400LA
Mounting Modeunit mount
Magnetic Tripping Current4000-4000 A
[In] Rated Current400 A
Electrical Connectionlugs, load || lugs, line
Magnetic Hold Current2000 A
Environment
- Product Certifications
- UL listed || IEC || CSA
