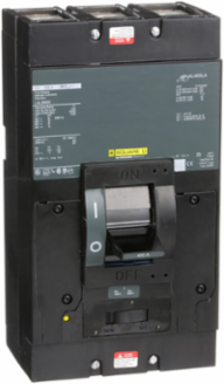

Square D LAL36400 PowerPact Circuit Breaker, 400A, 3 Pole, Thermal-Magnetic, 600VAC
Square D LAL36400 PowerPact Circuit Breaker, 400A, 3 Pole, Thermal-Magnetic, 600VAC
- MPN: LAL36400
- UPC: 785901426868
- PPN: SCH-LAL36400
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The PowerPact L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. L-frame circuit breakers are available with Micrologic electronic trip units only. The new generation PowerPact with Micrologic circuit breakers set the standard with direct access to energy management. Integrated metering enhances their protective functions. For the first time, Schneider Electric™ users can monitor energy from 15 to 3000A, offering new performance in a remarkably compact device. Electronic trip units provide highly accurate protection with wide setting ranges and can integrate measurement, metering and communication functions. They can be combined with the front display module (FDM121) to provide functions similar to a power meter. This 3-pole circuit breaker has a 400A rated current. This breaker has a breaking capacity of 10 kA@250VDC operation voltage. This breaker has a thermal-magnetic trip technology. The dimensions are 11 in (H), 6 in (W), 5.84 in (D).
Specifications
Complementary
- Terminal Identifier
- AL400LA
- Tightening Torque
- 13-13 N.m 42-304 mm² AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² AWG 1...250 kcmil)
- Electrical Connection
- lugs, load || lugs, line
- Circuit Breaker Application
- HACR rated
- Poles Description
- 3P
- Width
- 6 in
Height11 in
Magnetic Tripping Current4000-4000 A
Magnetic Hold Current2000 A
Mounting Modeunit mount
[In] Rated Current400 A
Depth5.84 in
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1410004EN
- Pvc Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Halogen Content PerformanceHalogen free plastic parts product
Environment
- Product Certifications
- IEC || CSA || UL listed
Specifications
- Trip Unit Technology
- thermal-magnetic
Product Or Component Typecircuit breaker
