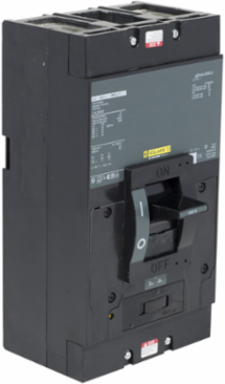

Square D LHL36225 Circuit breaker, LH, 225A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs

Circuit breaker, LH, 225A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs

Square D LHL36225 Circuit breaker, LH, 225A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs

MPN: LHL36225
UPC: 785901563273
PPN: SCH-LHL36225

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

Circuit breaker, LH, 225A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs

Specifications

Complementary

Circuit Breaker Application: HACR rated

Height: 11 in

Tightening Torque: 13-13 N.m 42-304 mm² AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² AWG 1...250 kcmil)

Magnetic Tripping Current: 2250-2250 A

[In] Rated Current: 225 A

Electrical Connection: lugs, load || lugs, line

Magnetic Hold Current: 1125 A

Terminal IdentifierAL400LA

Mounting Modeunit mount

Breaking Capacity CodeH

Poles Description3P

Width6 in

Depth5.84 in

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1410004EN

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant with Exemptions

Halogen Content PerformanceHalogen free plastic parts product

Environment

Product Certifications: UL listed || CSA || IEC

Specifications

Trip Unit Technology: thermal-magnetic

Product Or Component Typecircuit breaker
