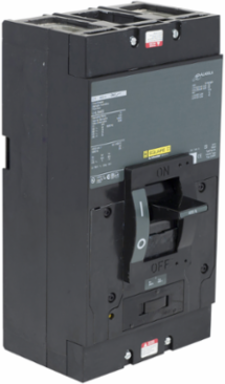

Square D LHL26300 Circuit Breaker 300A 2-Pole 600VAC 25kA Unit Mount 11 Inch Height
- MPN: LHL26300
- UPC: 785901358633
- PPN: SCH-LHL26300
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Square D FA/LA Molded Case Circuit Breakers is designed to protect electrical systems from damage caused by overloads and short circuits. For distribution systems supplied by transformers and distribution systems supplied by engine generator sets.
Documentation & Downloads
Specifications
Key Specifications
- Trip Unit Technology
- thermal-magnetic
Product Or Component Typecircuit breaker
Complementary
- Circuit Breaker Application
- HACR rated
- Height
- 11 in
- Tightening Torque
- 13-13 N.m 42-304 mm² AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² AWG 1...250 kcmil)
- Magnetic Tripping Current
- 3000-3000 A
- [In] Rated Current
- 300 A
- Electrical Connection
- lugs, load || lugs, line
- Magnetic Hold Current
- 1500 A
Terminal IdentifierAL400LA
Mounting Modeunit mount
Breaking Capacity CodeH
Poles Description2P
Width6 in
Depth5.84 in
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1410004EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product
Environment
- Product Certifications
- IEC || UL listed || CSA
