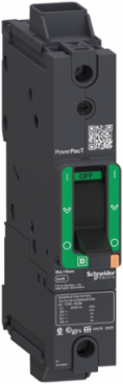

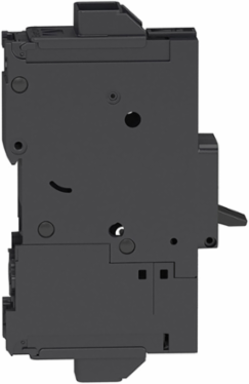

Schneider Electric BGL16100 PowerPact B Circuit Breaker, 100A, 1 Pole, 600Y/347VAC, 18kA
Schneider Electric BGL16100 PowerPact B Circuit Breaker, 100A, 1 Pole, 600Y/347VAC, 18kA
- MPN: BGL16100
- PPN: SCH-BGL16100
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1034.18/ EA
Description
This circuit breaker from Schneider Electric is designed for dependable power distribution, offering robust thermal and mechanical protection. With a rating of 100A and a single pole configuration, it is suitable for use in systems operating at 600Y/347VAC. The BGL16100 PowerPact B Circuit Breaker features an interrupting capacity of 18kA, ensuring reliable operation even in demanding environments. Ideal for industrial applications, it reflects Schneider Electric's commitment to safety and efficiency in electrical systems.
Specifications
- Amperage
- 100 A
- Breaking Capacity
- 65 kA 208Y/120 V AC, 65 kA 240 V AC, 35 kA 480Y/277 V AC, 18 kA 600Y/347 V AC, 20 kA 125 V DC
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Continuous Current Rating
- 80%
- Number of Poles
- 1P
- Utilisation Category
- Category A
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2
- AWG Gauge
- AWG 6 to AWG 2/0 fine stranded aluminum/copper, AWG 14 to AWG 3/0 rigid or stranded aluminum/copper
- Electrical Connection
- Everlink lug, line and load
- Power Wire Stripping Length
- 20 mm (0.79 in)

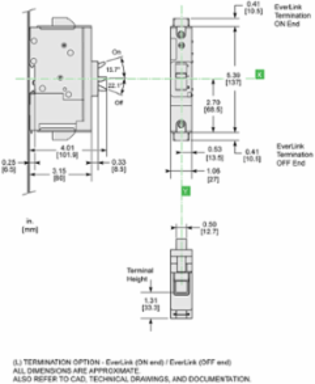

- Width
- 27 mm (1.06 in)
- Net Weight
- 0.51 kg (1.12 lb)
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- Compliance Certifications
- CE, UL, IEC, CCC, EAC, CSA, NOM
- RoHS Compliance
- Compliant
- PVC Free
- Yes
- Color
- Gray RAL 7016
- Product Type
- Circuit breaker
Voltage600Y/347 V AC
Rated Service Breaking Capacity65 kA 220-240 V AC
Rated Impulse Withstand Voltage8 kV IEC 60947-2
Trip Unit TechnologyThermal-magnetic TM-D
Suitability for IsolationYes IEC 60947-2
Mechanical Durability15000 cycles IEC 947-1 Annex F ed 5.2
Connection Pitch27 mm (1.06 in)
Mounting ModeClip-on 35 mm symmetrical DIN rail, by screws plate
Tightening Torque5 N.m (44.25 lbf.in) for AWG 14 to AWG 4, 9 N.m (79.66 lbf.in) for AWG 3 to AWG 3/0
Height137 mm (5.39 in)
Depth80 mm (3.15 in)
Circuit Breaker ApplicationHACR rated
IK Degree of ProtectionIK07 IEC 62262
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m (6562 ft) without derating, 5000 m with derating
StandardsNEMA AB1, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, CSA C22.2 No 5, UL 489, NMX J-266
Mercury FreeYes
Halogen Content PerformanceHalogen free product
Country of OriginMexico
