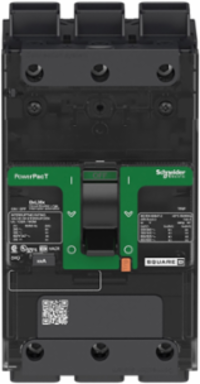

Schneider Electric BGL36100LU PowerPacT B Circuit Breaker, 100A, 3 Pole, 600Y/347VAC, 18kA
Schneider Electric BGL36100LU PowerPacT B Circuit Breaker, 100A, 3 Pole, 600Y/347VAC, 18kA
- MPN: BGL36100LU
- PPN: SCH-BGL36100LU
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2794.14/ EA
Description
The Schneider Electric PowerPacT B Circuit Breaker is a robust solution for power distribution, featuring a 100A capacity designed specifically for three-pole systems. Operating at 600Y/347VAC, this circuit breaker ensures reliable protection with a short-circuit rating of 18kA, making it a dependable choice for various electrical applications. Its molded case design not only enhances durability but also simplifies installation and maintenance, allowing for efficient management of circuit loads. Whether used in commercial or industrial settings, this circuit breaker provides peace of mind through superior performance and safety standards.
Specifications
- Amperage
- 100 A
- Breaking Capacity
- 65 kA 220-240 V, 18 kA 500-525 V, 35 kA 380-415 V, 35 kA 440 V, 65 kA 208Y/120 V AC 50/60 Hz, 35 kA 480/277 V AC, 20 kA 250 V DC
- Rated Operational Voltage
- 525 V AC 50/60 Hz
- Rated Impulse Withstand Voltage
- 8 kV
- Continuous Current Rating
- 80 %
- Poles Description
- 3P
- Wire Gauge
- AWG 6 to 2/0 fine stranded aluminum/copper, AWG 14 to 3/0 rigid or stranded aluminum/copper
- Tightening Torque
- 5 N.m (44.25 lbf.in) for 2.5-16 mm², 9 N.m (79.66 lbf.in) for 25-95 mm²
- Power Wire Stripping Length
- 20 mm (0.79 in)

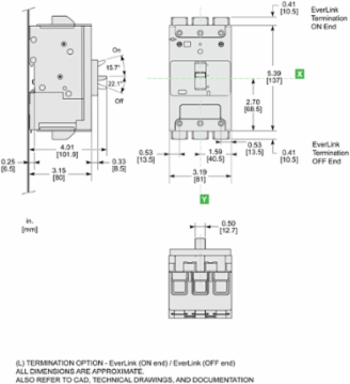

- Height
- 137 mm (5.39 in)
- Depth
- 80 mm (3.15 in)
- Material
- Gray, RAL 7016
- Standards
- NEMA AB1, NMX J-266, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, CSA C22.2 No 5, UL 489
- Quality Labels
- CE
- IK Degree of Protection
- IK07 IEC 62262
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Operating Altitude
- 2000 m (6562 ft) without derating, 5000 m with derating
- Utilisation Category
- Category A
- PVC Free
- Yes
- RoHS Compliance
- Compliant with Exemptions
- Environmental Disclosure
- ENVPEP1610005EN
Voltage600Y/347 VAC
Rated Service Breaking Capacity65 kA 220-240 V, 18 kA 500-525 V, 35 kA 380-415 V, 35 kA 440 V
Rated Insulation Voltage800 V
Trip Unit TechnologyThermal-magnetic TM-D
Number of Poles3P
Connection Pitch27 mm (1.06 in)
Electrical ConnectionEverlink lug, line and load
Number of Slots1 auxiliary switch OF plug-in, 1 voltage release MN or MX plug-in, 1 alarm switch SD plug-in

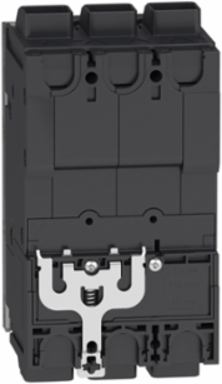

Mounting ModeClip-on 35 mm symmetrical DIN rail, by screws plate
Width81 mm (3.19 in)
Net Weight1.074 kg (2.37 lb)
Circuit Breaker ApplicationHACR rated
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
IP Degree of ProtectionFront cover IP40 IEC 60529
Pollution Degree3 IEC 60947-1
Ambient Air Temperature for Storage-50 to 85 °C (-58 to 185 °F)
Suitability for IsolationYes IEC 60947-2
Mercury FreeYes
Halogen Content PerformanceHalogen free product
Sustainable Offer StatusGreen Premium product
