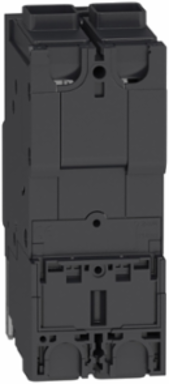

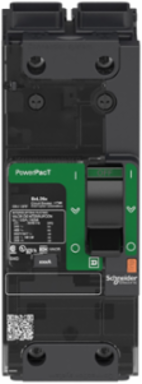

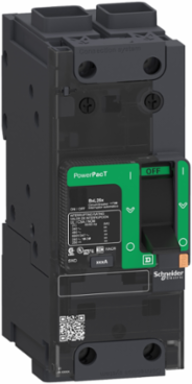

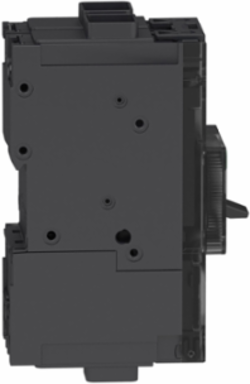

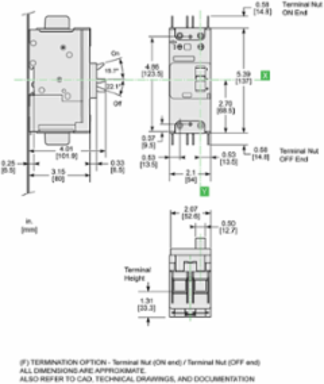

Schneider Electric BDF26100 PowerPact B Circuit Breaker, 100A, 2 Pole, 14kA, Thermal Magnetic
- MPN: BDF26100
- PPN: SCH-BDF26100
CAD
$1837.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for robust protection and exceptional performance, the Schneider Electric BDF26100 PowerPact B Circuit Breaker stands out in the realm of power distribution. With a current rating of 100A and a two-pole configuration, it is engineered to handle significant electrical loads with a remarkable short-circuit rating of 14kA. This thermal magnetic circuit breaker embodies reliability, ensuring your electrical systems are safeguarded against overloads and short circuits. Its efficient design makes it a vital component for any molded case circuit breaker setup, providing peace of mind and operational excellence in your power management solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth80 mm
Physical Attributes
- Color
- Gray RAL 7016)
Wire Stripping Length20 mm
Complementary Attributes
- Line Rated Current
- 100-100 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Awg Gauge
- 14 AWG...8 AWG aluminium/copper, 6 AWG...3/0 AWG aluminium/copper
- Certificate Agency
- UL, IEC, CCC, EAC, CSA, NOM
- Carbon Footprint Of The Distribution Phase [A4]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.48657929220696505, 0.5 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 149 kg CO2 eq., 149.3035136191809
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Connection Pitch
- 27 mm
- Control Type
- toggle
- Device Short Name
- BD 100
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Network Frequency
- 50/60 Hz
- Number Of Slots
- 1 auxiliary switch OF plug-in)1 voltage release MN or MX plug-in)
- Product Name
- PowerPact B
- Protected Poles Description
- 2t
- Quantity Per Set
- set of 1
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-2
- Total Lifecycle Carbon Footprint
- 162 kg CO2 eq.
- Trip Unit Technology
- thermal-magneticTM-D,
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 55
- Width Nominal
- 54 mm
- [Ui] Rated Insulation Voltage
- 800 V IEC 60947-2
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 680.389 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Tightening Torque5-5 N.m 2.5-16 mm² (14 AWG...4 AWG), 9-9 N.m 25-95 mm² (3 AWG...3/0 AWG)
[Ics] Rated Service Breaking Capacity25 kA 220...240 V AC 50/60 Hz IEC 60947-214 kA 500...525 V AC 50/60 Hz IEC 60947-218 kA 380...415 V AC 50/60 Hz IEC 60947-2, 18 kA 440 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.8403278929436455
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 8.926027641774093
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Circuit Breaker ApplicationHACR rated
Continuous Current Rating80 %
Device Applicationdistribution
Electrical Connectionterminal nut, ON and OFF end
Local Signallingpresence of auxiliary contacts flag green)
Mounting Modeclip-on 35 mm symmetrical DIN rail)by screws plate)
Number Of Poles2P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecircuit breaker
Quality LabelsCE
RangePowerPact
Software Versionv6.2.5-6
Sustainable PackagingYes
Trip Unit NameTM-D
Utilisation Categorycategory A
Pep CodeENVPEP2311047EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal137 mm
[Ue] Rated Operational Voltage525 V AC 50/60 Hz UL 489
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- 9 Mm Pitches
- 6
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- front cover IP40 IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint161.5564484461056
Environmental DisclosureENVPEP2311047EN
Halogen Content PerformanceHalogen free product
Operating Altitude6561.68 ft (2000 m) without derating5000 m with derating
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2311047EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
