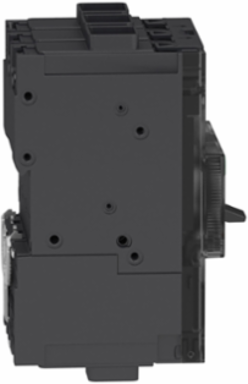

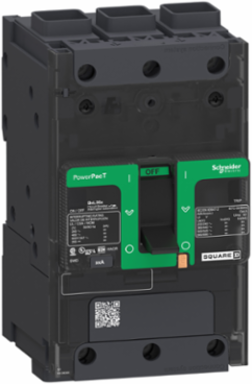

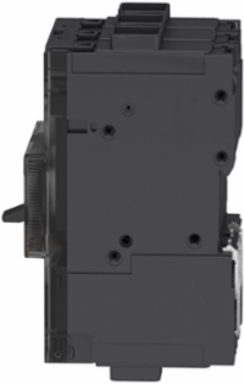

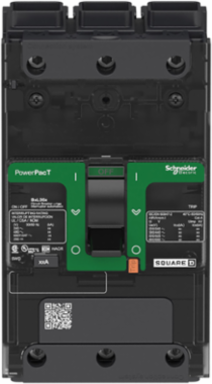

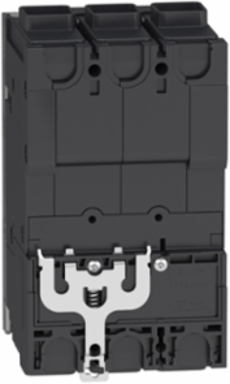

Schneider Electric BGF36015 PowerPact B Circuit Breaker 15A 3 Pole 600Y/347VAC 18kA
- MPN: BGF36015
- PPN: SCH-BGF36015
CAD
$2283.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for exceptional reliability, the Schneider Electric PowerPact B Circuit Breaker is a vital component for any power distribution system. This 15A, 3-pole breaker is rated for use in 600Y/347VAC applications, providing robust protection with a short-circuit rating of 18kA. Its molded case design ensures a reliable performance in demanding environments, making it an ideal choice for both commercial and industrial settings. With Schneider Electric’s commitment to quality, this circuit breaker combines safety and efficiency to safeguard your electrical systems effectively.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Breaking Capacity
- 65 kA 220-240 V AC, 18 kA 500-525 V AC, 35 kA 380-415 V AC, 35 kA 440 V AC, 65 kA 208Y/120 V AC, 20 kA 250 V DC
- Breaking Capacity Code
- G
- Trip Unit Technology
- Thermal-magnetic TM-D
- Rated Insulation Voltage
- 800 V
- Utilisation Category
- Category A
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- AWG Gauge
- AWG 14...AWG 8 aluminum/copper, AWG 6...AWG 3/0 aluminum/copper
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail, by screws plate
- Tightening Torque
- 5 N.m (44.25 lbf.in) AWG 14...AWG 4, 9 N.m (79.66 lbf.in) AWG 3...AWG 3/0
- Power Wire Stripping Length
- 20 mm (0.79 in)
- Width
- 81 mm (3.19 in)
- Net Weight
- 0.924 kg (2.04 lb)
- Protected Poles Description
- 3t
- Product Certifications
- UL, IEC, CCC, EAC, CSA, NOM
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- Sustainable Offer Status
- Green Premium product
- PVC Free
- Yes
- Color
- Grey RAL 7016
- Device Short Name
- BG 015
- China RoHS Regulation
- Product out of China RoHS scope
- Trip Unit Name
- TM-D
- Range
- PowerPact
- Environmental Disclosure
- ENVPEP1610005EN
Voltage600Y/347 V AC
Rated Operational Voltage525 V AC 50/60 Hz
Rated Impulse Withstand Voltage8 kV
Continuous Current Rating80 %
Suitability for IsolationYes
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Connection Pitch27 mm (1.06 in)
Local SignallingPresence of auxiliary contacts flag green
Electrical ConnectionTerminal nut, ON and OFF end
Number of Slots1 auxiliary switch OF plug-in, 1 voltage release MN or MX plug-in, 1 alarm switch SD plug-in
Height137 mm (5.39 in)
Depth80 mm (3.15 in)
Circuit Breaker ApplicationHACR rated
Poles Description3P
StandardsEN/IEC 60947-5-1, GB 14048.2, NEMA AB1, CSA C22.2 No 5, UL 489, EN/IEC 60947-2, NMX J-266
IK Degree of ProtectionIK07 IEC 62262
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m (6562 ft) without derating, 5000 m with derating
Mercury FreeYes
Halogen Content PerformanceHalogen free product
Device ApplicationDistribution
Eu RoHS DirectiveCompliant
WEEEMust be disposed following EU collection requirements
Control TypeToggle
Product NamePowerPact B
