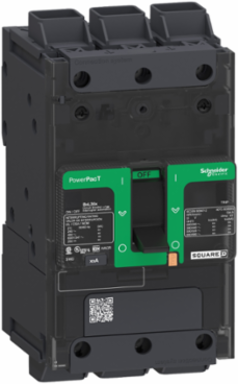

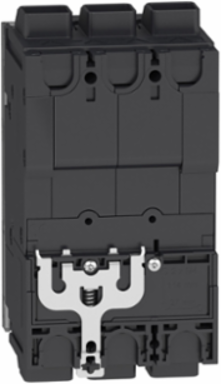

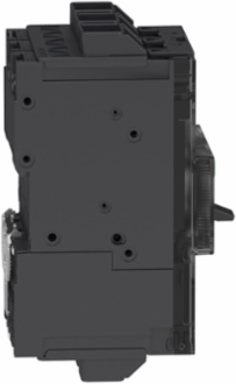

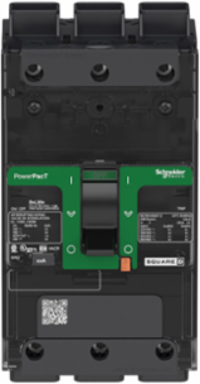

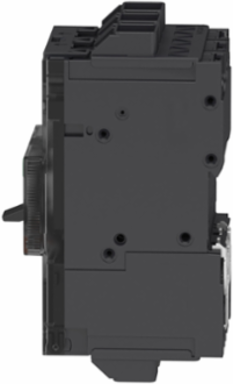

Schneider Electric BGL36015LU PowerPact B Circuit Breaker 15A 3 Pole 600Y/347VAC 18kA
- MPN: BGL36015LU
- PPN: SCH-BGL36015LU
CAD
$2507.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The BGL36015LU PowerPact B Circuit Breaker from Schneider Electric stands out as a reliable element in power distribution systems. With a robust capacity of 15A and a three-pole configuration, it is designed to handle voltages up to 600Y/347VAC, ensuring effective protection and control in various applications. This molded case circuit breaker is rated at 18kA, offering dependable short-circuit protection, making it an essential choice for those requiring security and efficiency in their electrical setups. Ideal for both commercial and industrial environments, this circuit breaker combines innovative engineering with durability, ensuring safety and reliability in managing power flows.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Rated Operational Voltage
- 525 V AC 50/60 Hz
- Rated Service Breaking Capacity
- 65 kA 220-240 V AC 50/60 Hz IEC 60947-2, 18 kA 500-525 V AC 50/60 Hz IEC 60947-2, 35 kA 380-415 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2
- Trip Unit Technology
- Thermal-magnetic TM-D
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Circuit Breaker Application
- HACR rated
- Connection Pitch
- 27 mm (1.06 in)
- Width
- 81 mm (3.19 in)
- Net Weight
- 1.074 kg (2.37 lb)
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail, By screws (plate)
- Tightening Torque
- 5 N.m for AWG 14-4, 9 N.m for AWG 3-3/0
- Local Signalling
- Presence of auxiliary contacts (flag green)
- Standards
- EN/IEC 60947-2, UL 489, CSA C22.2 No 5, EN/IEC 60947-5-1, GB 14048.2, NMX J-266, NEMA AB1
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- Sustainable Offer Status
- Green Premium product
- PVC Free
- Yes
- EU RoHS Directive
- Compliant
Breaking Capacity65 kA 220-240 V AC, 18 kA 500-525 V AC, 35 kA 380-415 V AC, 35 kA 440 V AC, 20 kA 250 V DC, 18 kA 600Y/347 V AC
Rated Insulation Voltage800 V IEC 60947-2
Voltage600Y/347 VAC
Continuous Current Rating80%
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Number of Poles3P
Height137 mm (5.39 in)
Depth80 mm (3.15 in)
AWG GaugeAWG 6 to AWG 2/0 fine stranded aluminum/copper, AWG 14 to AWG 3/0 rigid or stranded aluminum/copper
Electrical ConnectionEverlink lug, line and load
Power Wire Stripping Length20 mm (0.79 in)
Quality LabelsCE
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
IK Degree of ProtectionIK07 IEC 62262
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m (6562 ft) without derating, 5000 m with derating
Mercury FreeYes
Halogen Content PerformanceHalogen free product
ColorGray RAL 7016
