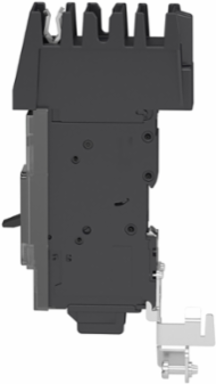

Square D BJA160205 PowerPact B Circuit Breaker, 20A, 1 Pole, 25kA, Thermal Magnetic
- MPN: BJA160205
- PPN: SCH-BJA160205
CAD
$1166.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 20A, 1 pole, circuit breaker has a breaking capacity of 25kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with a C phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth89 mm
Physical Attributes
- Color
- Gray RAL 7016)
Complementary Attributes
- Line Rated Current
- 20-20 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- I-Line connection, line, lugs, load
- Certificate Agency
- UL, IEC, CCC, EAC, CSA, NOM
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 1.334078383224374
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 4.192480929591857
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- AWG 14...AWG 2/0 aluminium/copper
- Connection Pitch
- 27 mm
- Control Type
- toggle
- Device Short Name
- BJ 020
- Energy Efficiency Optimized
- False
- Mechanical Durability
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Network Frequency
- 50/60 Hz
- Phase Connection
- C
- Product Name
- PowerPact B
- Quantity Per Set
- set of 1
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-2
- Total Lifecycle Carbon Footprint
- 64 kg CO2 eq.
- Utilisation Category
- category A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 120.888
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 137 mm
- [Ics] Rated Service Breaking Capacity
- 65 kA 220...240 V AC 50/60 Hz IEC 60947-2
- [Ui] Rated Insulation Voltage
- 800 V IEC 60947-2
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 784.7 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Tightening Torque3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10), 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
Carbon Footprint Of The Distribution Phase [A4]0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.22854224579866408, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]58 kg CO2 eq., 58.14147408662282
Local Publishable Date2025-11-13
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Continuous Current Rating80 %
Device Applicationdistribution
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Local Signallingpresence of auxiliary contacts flag green)
Mounting ModeI-Line
Number Of Poles1P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typecircuit breaker
RangePowerPact
Software Versionv6.2.5-6
Sustainable PackagingYes
Trip Unit Technologythermal-magnetic
Pep CodeENVPEP2311047EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %55
Width Nominal27 mm
[Ue] Rated Operational Voltage240 V AC 50/60 Hz UL 489
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 63.89657564523772
- Environmental Disclosure
- ENVPEP2311047EN
- Halogen Content Performance
- Halogen free product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
Halogene PerformanceHalogen free product
Mercury FreeYes
9 Mm Pitches3
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of Protectionfront cover IP40 IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2311047EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
Batteries & Runtime Attributes
- Removable Battery
- No
