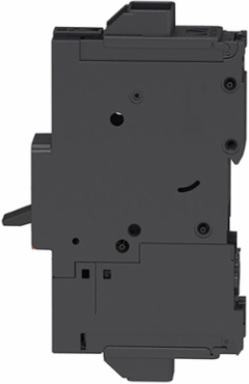

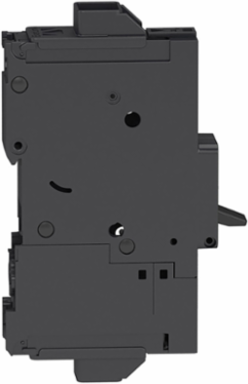

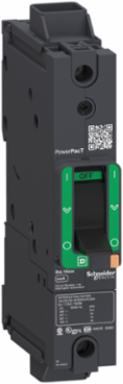

Square D BJL16020 PowerPacT B Circuit Breaker 20A 1 Pole 600Y/347VAC 25kA
- MPN: BJL16020
- PPN: SCH-BJL16020
CAD
$1204.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Schneider Electric Circuit Breaker is engineered to provide robust power distribution and protective capabilities, specifically designed for 1-pole applications in commercial and industrial settings. With a rating of 20A and capable of handling up to 600Y/347VAC, it ensures reliable performance under demanding conditions. The device features a breaking capacity of 25kA, which means it can effectively interrupt fault currents, helping to safeguard your electrical systems. Ideal for integration within various panel configurations, this molded case circuit breaker embodies both safety and efficiency, making it a crucial component for any reliable power distribution setup.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Breaking Capacity
- 100 kA 208Y/120 V AC, 100 kA 240 V AC, 65 kA 480Y/277 V AC, 25 kA 600Y/347 V AC, 50 kA 125 V DC
- Network Frequency
- 50/60 Hz
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Continuous Current Rating
- 80 %
- Suitability for Isolation
- Yes IEC 60947-2
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex F ed 5.2
- Connection Pitch
- 27 mm (1.06 in)
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail, By screws plate
- Tightening Torque
- 5 N·m (44.25 lbf·in) AWG 14...AWG 4, 9 N·m (79.66 lbf·in) AWG 3...AWG 3/0
- Height
- 137 mm (5.39 in)
- Depth
- 80 mm (3.15 in)
- Circuit Breaker Application
- HACR rated
- Standards
- UL 489, EN/IEC 60947-2, NMX J-266, CSA C22.2 No 5, EN/IEC 60947-5-1, NEMA AB1, GB 14048.2
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- Country of Origin
- MX
- Mercury Free
- Yes
- Halogen Content
- Halogen free product
Voltage600Y/347 V AC
Rated Operational Voltage240 V AC 50/60 Hz UL 489
Rated Service Breaking Capacity65 kA 220...240 V AC 50/60 Hz IEC 60947-2
Trip Unit TechnologyThermal-magnetic TM-D
Rated Insulation Voltage800 V IEC 60947-2
Utilisation CategoryCategory A
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 In
AWG Gauge RangeAWG 6...AWG 2/0 fine stranded aluminum/copper, AWG 14...AWG 3/0 rigid or stranded aluminum/copper
Electrical ConnectionEverlink lug, line and load
Power Wire Stripping Length20 mm (0.79 in)
Width27 mm (1.06 in)
Net Weight0.51 kg (1.12 lb)
Quality LabelsCE
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
IK Degree of ProtectionIK07 IEC 62262
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m (6562 ft) without derating, 5000 m with derating
RoHS ComplianceCompliant with Exemptions
PVC FreeYes
ColorGray RAL 7016
