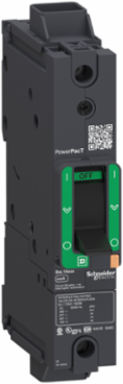

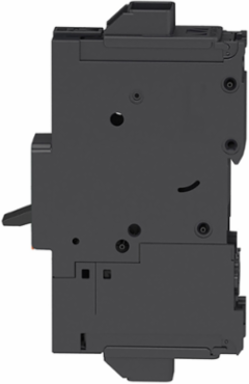

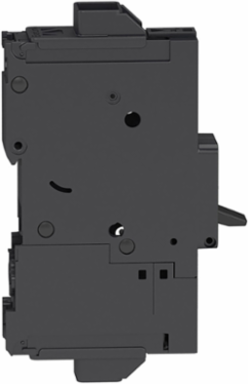

Square D BJL16030 PowerPact B Circuit Breaker, 30A, 1 Pole, 25kA, 600Y/347VAC
- MPN: BJL16030
- PPN: SCH-BJL16030
CAD
$1204.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robust performance within power distribution systems, the Schneider Electric BJL16030 PowerPact B Circuit Breaker ensures reliable circuit protection in demanding environments. With a current rating of 30A and a single-pole configuration, it is capable of handling a fault current rating of 25kA, making it suitable for various applications. Designed to operate at 600Y/347VAC, this molded case circuit breaker is an essential component for ensuring safety and efficiency in electric installations, providing peace of mind for both panel builders and end-users alike.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Breaking Capacity
- 100 kA 208Y/120 V AC, 100 kA 240 V AC, 65 kA 480Y/277 V AC, 25 kA 600Y/347 V AC, 50 kA 125 V DC UL 489
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Pollution Degree
- 3 IEC 60947-1
- Trip Unit Technology
- Thermal-magnetic TM-D
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex F
- Utilisation Category
- Category A
- Rated Current
- 30 A
- Protected Poles Description
- 1t
- Wire Size Range
- AWG 6 to AWG 2/0 fine stranded aluminum/copper, AWG 14 to AWG 3/0 rigid or stranded aluminum/copper
- Power Wire Stripping Length
- 20 mm
- Height
- 137 mm
- Depth
- 80 mm
- Electrical Connection
- Everlink lug, line and load
- Circuit Breaker Application
- HACR rated
- Product Certifications
- UL, IEC, CCC, EAC, CSA, NOM
- IK Degree of Protection
- IK07 IEC 62262
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- RoHS Compliance
- Compliant with Exemptions
- Mercury Free
- Yes
- Country of Origin
- Mexico
Rated Operational Voltage240 V AC 50/60 Hz UL 489
Rated Service Breaking Capacity65 kA 220...240 V AC 50/60 Hz IEC 60947-2
Continuous Current Rating80 %
Network Frequency50/60 Hz
Electrical Durability10000 cycles IEC 947-1 Annex K
Rated Insulation Voltage800 V IEC 60947-2
Suitability For IsolationYes IEC 60947-2
Number of Poles1P
Connection Pitch27 mm
Tightening Torque5-5 N.m (AWG 14 to AWG 4), 9-9 N.m (AWG 3 to AWG 3/0)
Mounting ModeClip-on 35 mm symmetrical DIN rail, By screws plate
Width27 mm
Net Weight0.51 kg
ColorGray RAL 7016
StandardsNMX J-266, EN/IEC 60947-2, GB 14048.2, CSA C22.2 No 5, UL 489, EN/IEC 60947-5-1, NEMA AB1
IP Degree of ProtectionFront cover IP40 IEC 60529
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m without derating, 5000 m with derating
Halogen Content PerformanceHalogen free product
PVC FreeYes
