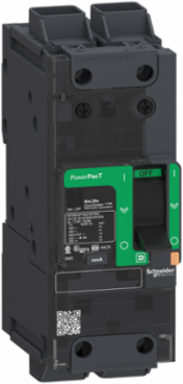

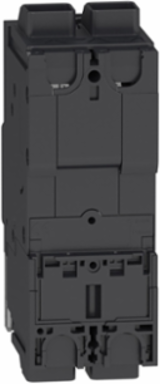

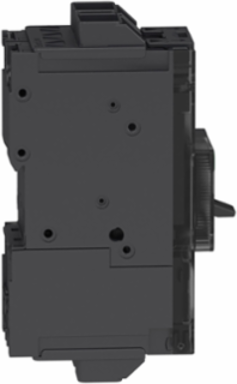

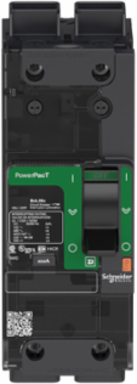

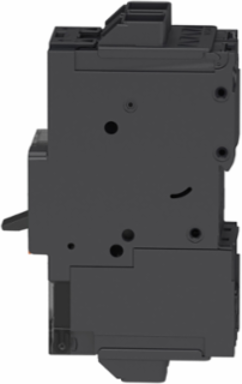

Schneider Electric BDL26025LU PowerPacT B Circuit Breaker, 25A, 2 Pole, 600Y/347VAC, 14kA, Thermal-Magnetic
- MPN: BDL26025LU
- PPN: SCH-BDL26025LU
CAD
$1752.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BDL26025LU PowerPacT B Circuit Breaker is engineered for optimal power distribution and exceptional reliability in electrical systems. This 25A, 2 pole breaker is designed to operate within a voltage range of 600Y/347VAC and offers robust protection with a thermal-magnetic mechanism that effectively manages overload and short circuit conditions. With a breaking capacity of 14kA, it provides secure and dependable performance, making it an essential component for modern electrical installations within commercial and industrial settings. Its durable design and advanced engineering support efficient power management and enhance system safety.
Documentation & Downloads
Specifications
Additional
- Amperage
- 25 A
- Rated Current
- 25 A
- Breaking Capacity
- 25 kA 208Y/120 V AC, 18 kA 240 V AC, 25 kA 480/277 V AC, 14 kA 480 V AC, 18 kA 600Y/347 V AC, 14 kA 250 V DC UL 489
- Rated Service Breaking Capacity
- 25 kA 220-240 V AC, 14 kA 500-525 V AC, 18 kA 380-440 V AC
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Utilisation Category
- Category A
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Circuit Breaker Application
- HACR rated
- Wire Stripping Length
- 20 mm (0.79 in)
- Local Signalling
- Presence of auxiliary contacts flag green
- Electrical Connection
- Everlink lug, line and load
- Height
- 137 mm (5.39 in)
- Depth
- 80 mm (3.15 in)
- Color
- Gray RAL 7016
- IK Degree of Protection
- IK07 IEC 62262
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- Standards
- EN/IEC 60947-2, CSA C22.2 No 5, NEMA AB1, GB 14048.2, NMX J-266, EN/IEC 60947-5-1, UL 489
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free
- Range
- PowerPact
- Control Type
- Toggle
- Number Of Slots
- 1 auxiliary switch OF plug-in, 1 voltage release MN or MX plug-in
Poles2P
Voltage525 V AC 50/60 Hz UL 489
Breaking Capacity CodeD
Rated Impulse Withstand Voltage8 kV IEC 60947-2
Suitability for IsolationYes IEC 60947-2
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Connection Pitch27 mm (1.06 in)
AWG GaugeAWG 6...AWG 2/0 fine stranded aluminum/copper, AWG 14...AWG 3/0 rigid or stranded aluminum/copper
Mounting ModeClip-on 35 mm symmetrical DIN rail, By screws plate
Tightening Torque5 N.m (44.25 lbf.in), 9 N.m (79.66 lbf.in)
Width54 mm (2.13 in)
Net Weight0.769 kg (1.70 lb)
IP Degree of ProtectionFront cover IP40 IEC 60529
Pollution Degree3 IEC 60947-1
Operating Altitude2000 m (6562 ft) without derating, 5000 m with derating
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM, CE
RoHS ComplianceCompliant
Pvc FreeYes
Device Short NameBD 025
Device ApplicationDistribution
Network Frequency50/60 Hz
