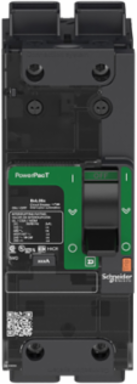

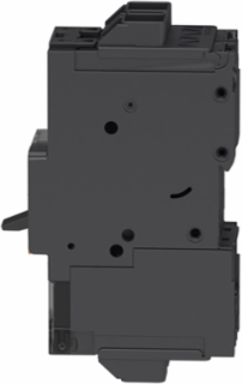

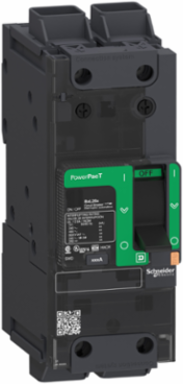

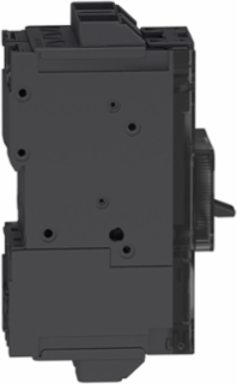

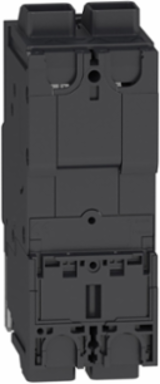

Schneider Electric BDL26050LU PowerPacT B 50A Circuit Breaker, 2 Pole, 600Y/347VAC, 14kA
- MPN: BDL26050LU
- PPN: SCH-BDL26050LU
CAD
$1752.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for exceptional reliability, the 50A Circuit Breaker from Schneider Electric's PowerPacT B series is designed to provide robust protection in demanding power distribution applications. With a two-pole configuration suitable for 600Y/347VAC systems, it ensures effective current interruption, handling a fault current of up to 14kA. This molded case circuit breaker not only enhances operational safety but also supports efficient management of electrical loads, making it an invaluable component in any modern electrical panel setup. Whether for commercial or industrial use, its advanced design delivers the performance needed to safeguard critical circuits against overloads and short circuits.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 50 A
- Rated Operational Voltage
- 525 V AC 50/60 Hz UL 489
- Continuous Current Rating
- 80%
- Voltage
- 600Y/347 VAC
- Circuit Breaker Application
- HACR rated
- Connection Pitch
- 27 mm (1.06 in)
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail or by screws plate
- Height
- 137 mm (5.39 in)
- Depth
- 80 mm (3.15 in)
- Pollution Degree
- 3 IEC 60947-1
- Product Certifications
- UL, IEC, CCC, EAC, CSA, NOM
- IK Degree of Protection
- IK07 IEC 62262
- Storage Temperature Range
- -50 to 85 °C (-58 to 185 °F)
- Environmental Compliance
- RoHS Compliant with Exemptions, Mercury Free, China RoHS Compliant, PVC Free
- Color
- Gray RAL 7016
Breaking Capacity25 kA 208Y/120 V AC, 18 kA 240 V AC, 25 kA 480/277 V AC, 14 kA 480 V AC, 18 kA 600Y/347 V AC, 14 kA 250 V DC
Rated Insulation Voltage800 V IEC 60947-2
Trip Unit TechnologyThermal-magnetic TM-D
Number of Poles2P
Control TypeToggle
AWG Gauge RangeAWG 6 to AWG 2/0 fine stranded, AWG 14 to AWG 3/0 rigid or stranded aluminum/copper
Tightening Torque5 to 9 N.m (44.25 to 79.66 lbf.in)
Width54 mm (2.13 in)
Net Weight0.769 kg (1.70 lb)
StandardsUL 489, IEC 60947-2, CSA C22.2 No 5, NEMA AB1, GB 14048.2, EN/IEC 60947-5-1, NMX J-266
IP Degree of ProtectionFront cover IP40 IEC 60529
Operating Temperature Range-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m without derating, 5000 m with derating (6561.68 ft)
Halogen ContentHalogen Free
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
