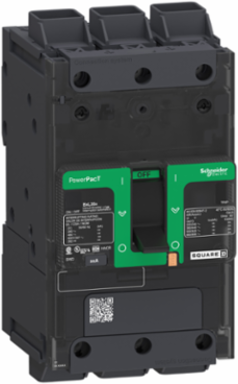

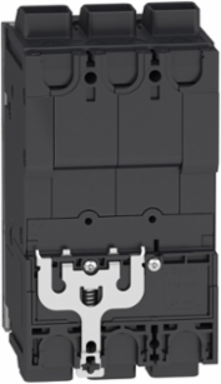

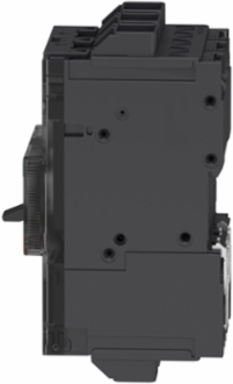

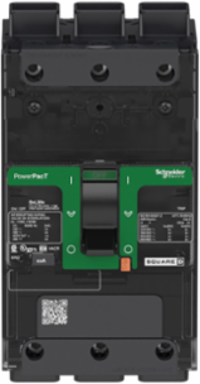

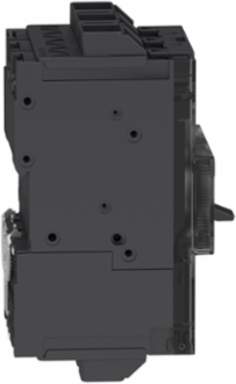

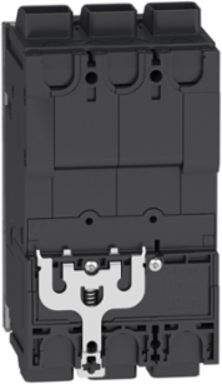

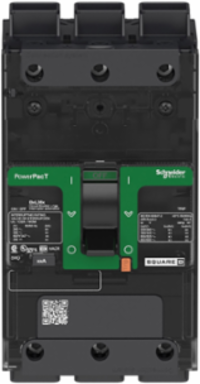

Schneider Electric BDL36060LU PowerPact B Circuit Breaker, 60A, 3 Pole, 14kA, IP40, 81mm Width
- MPN: BDL36060LU
- PPN: SCH-BDL36060LU
CAD
$2025.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robust power distribution needs, the Schneider Electric BDL36060LU PowerPact B Circuit Breaker offers reliable electrical protection with a 60A capacity across three poles. This circuit breaker features a short-circuit rating of 14kA, ensuring it can handle unexpected electrical surges with ease. Designed with an IP40 rating, it provides a degree of protection against solid objects, making it ideal for a variety of applications in industrial settings. With a compact width of just 81mm, it effectively balances space efficiency and performance, making it an essential component for modern electrical systems.
Documentation & Downloads
Specifications
Additional
- Amperage
- 60 A
- Breaking Capacity
- 25 kA 208Y/120 V AC, 18 kA 240 V AC, 25 kA 480/277 V AC, 14 kA 480 V AC, 18 kA 600Y/347 V AC, 14 kA 250 V DC
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Continuous Current Rating
- 80%

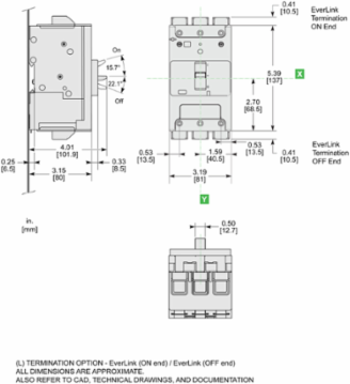

- Width
- 81 mm (3.19 in)
- Depth
- 80 mm (3.15 in)
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail or screws plate
- Power Wire Stripping Length
- 20 mm (0.79 in)
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Suitability for Isolation
- Yes IEC 60947-2
- IK Degree of Protection
- IK07 IEC 62262
- Operating Temperature Range
- -25 to 70 °C (-13 to 158 °F)
- Trip Unit Name
- TM-D
- Standards
- UL 489, IEC 60947-2, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-5-1, NMX J-266, GB 14048.2
- Country of Origin
- US
- PVC Free
- Yes
- Compliance
- RoHS Compliant with Exemptions
Number of Poles3P
Rated Operational Voltage525 V AC 50/60 Hz
Trip Unit TechnologyThermal-magnetic TM-D
Control TypeToggle
Height137 mm (5.39 in)
AWG GaugeAWG 6 to AWG 2/0 fine stranded aluminum/copper, AWG 14 to AWG 3/0 rigid or stranded aluminum/copper
Tightening Torque5 to 9 N.m depending on wire size
IP Degree of ProtectionIP40 IEC 60529 (front cover)
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2
Pollution Degree3 IEC 60947-1
Local SignallingPresence of auxiliary contacts flag (green)
Storage Temperature Range-50 to 85 °C (-58 to 185 °F)
ColorGray (RAL 7016)
CertificationsUL, IEC, CCC, EAC, CSA, NOM
Halogen ContentHalogen free
Mercury FreeYes
