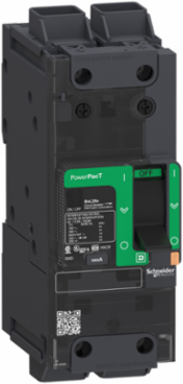

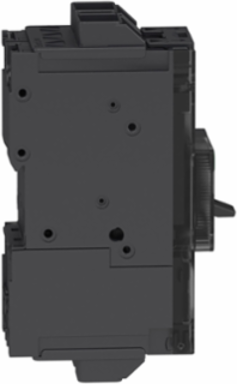

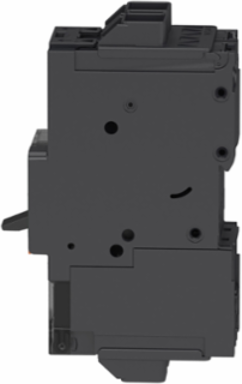

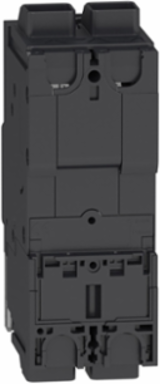

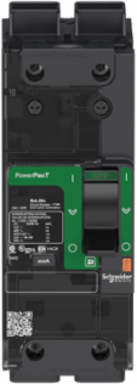

Schneider Electric BDL26070LU PowerPacT B Circuit Breaker, 70A 2 Pole, 600Y/347VAC, 14kA
- MPN: BDL26070LU
- PPN: SCH-BDL26070LU
CAD
$2060.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BDL26070LU PowerPacT B Circuit Breaker is designed to provide robust protection and reliable performance in power distribution applications. With a current rating of 70A and a two-pole configuration, it operates efficiently at voltages of 600Y/347VAC, making it suitable for a variety of industrial environments. This circuit breaker features a breaking capacity of 14kA, ensuring that it can effectively interrupt fault currents and safeguard connected equipment. Ideal for modern electrical installations, it combines advanced technology and durability to ensure consistent protection and operational integrity.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 70 A
- Breaking Capacity
- 25 kA 208Y/120 V AC, 18 kA 240 V AC, 25 kA 480/277 V AC, 14 kA 480 V AC, 18 kA 600Y/347 V AC, 14 kA 250 V DC
- Rated Service Breaking Capacity
- 25 kA 220-240 V AC, 14 kA 500-525 V AC, 18 kA 380-415 V AC, 18 kA 440 V AC
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Network Frequency
- 50/60 Hz
- Suitability for Isolation
- Yes IEC 60947-2
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Connection Pitch
- 27 mm (1.06 in)
- Tightening Torque
- 5 N·m for AWG 14 to AWG 4; 9 N·m for AWG 3 to AWG 3/0
- Height
- 137 mm (5.39 in)
- Depth
- 80 mm (3.15 in)
- Number of Poles
- 2P
- IK Degree of Protection
- IK07 IEC 62262
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Operating Altitude
- 2000 m without derating, 5000 m with derating
- Standards
- NEMA AB1, GB 14048.2, UL 489, EN/IEC 60947-5-1, EN/IEC 60947-2, NMX J-266, CSA C22.2 No 5
- Material Compliance
- RoHS Compliant, Mercury Free, Halogen Free, PVC Free
- Color
- Gray RAL 7016
Voltage600Y/347 V AC
Breaking Capacity CodeD
Rated Insulation Voltage800 V IEC 60947-2
Trip Unit Technologythermal-magnetic TM-D
Continuous Current Rating80 %
Utilisation CategoryCategory A
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2, 440 V In
AWG GaugeAWG 6 to AWG 2/0 fine stranded aluminum/copper, AWG 14 to AWG 3/0 rigid or stranded aluminum/copper
Power Wire Stripping Length20 mm (0.79 in)
Width54 mm (2.13 in)
Net Weight0.769 kg (1.70 lb)
IP Degree of ProtectionFront cover IP40 IEC 60529
Pollution Degree3 IEC 60947-1
Ambient Air Temperature for Storage-50 to 85 °C (-58 to 185 °F)
Circuit Breaker ApplicationHACR rated
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
Sustainability StatusGreen Premium product
