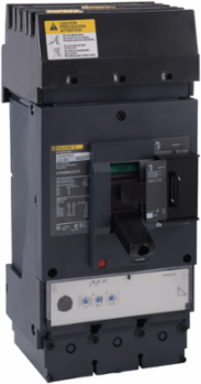

Square D LGA36400U31XYP PowerPacT L Circuit Breaker, 400A, 3 Pole, 600VAC, 18kA
- MPN: LGA36400U31XYP
- UPC: 785901266846
- PPN: SCH-LGA36400U31XYP
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric PowerPacT L Circuit Breaker is engineered to provide robust protection in power distribution systems. With a current rating of 400A and a three-pole design, it excels in handling electrical loads up to 600VAC. This circuit breaker also features a short-circuit current rating of 18kA, ensuring reliable performance and safety even under fault conditions. Ideal for a variety of industrial applications, its molded case design facilitates durability and efficient operation, making it an essential component in modern electrical systems.
Documentation & Downloads
Specifications
Additional
- Amperage
- 400 A
- Rated Operational Voltage
- 600 V AC 50/60 Hz IEC 60947-3
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Number of Poles
- 3
- Breaking Capacity Code
- G
- Trip Unit Technology
- Electronic, standard, MicroLogic 3.3, LI
- Awg Gauge
- AWG 3/0...500 kcmil aluminum/copper
- Width
- 140 mm (5.51 in)
- Net Weight
- 6.2 kg (13.67 lb)
- Tightening Torque
- 50 N·m (442.54 lbf·in)
- Phase Connection
- ABC
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Operating Altitude
- < 2000 m without derating, up to 5000 m with derating
- Standards
- UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- IP Degree of Protection
- Front cover IP40
- Mercury Free
- Yes
- Utilisation Category
- Category A
- Environmental Disclosure
- ENVPEP2206029EN
- Communication Interface
- Modbus, Ethernet
- Range
- PowerPact L
- Terminal Identifier
- AL600LF52K3
- Product Type
- Circuit breaker
- Local Signalling
- 1 LED green (ready), 1 LED orange (90% Ir alarm), 1 LED red (105% Ir alarm), 1 green trip indicator
- Sustainable Offer Status
- Green Premium product
- Country of Origin
- US
Rated Service Breaking Capacity65 kA 220/240 V AC, 35 kA 380/415/440 V AC, 18 kA 500/525/600 V AC, 20 kA 250/500 V DC UL 489 IEC 60947-2
Rated Insulation Voltage750 V IEC 60947-2
Continuous Current Rating80%
Control TypeToggle
Protection TechnologyCurrent limiter
Mounting ModeI-Line bracket
Height340 mm (13.39 in)
Depth110 mm (4.33 in)
Mounting Height6 in (152.4 mm)
Power Wire Stripping Length31 mm (1.22 in)
Pollution Degree3 IEC 60947-1
Ambient Air Temperature for Storage-50 to 85 °C (-58 to 185 °F)
Circuit Breaker ApplicationHACR rated
Product CertificationsUL, CSA, NOM
RoHS ComplianceCompliant with exemptions
PVC FreeYes
Suitability For IsolationYes IEC 60947-2
ColourBlack
Number of Slots2 auxiliary switch OF plug-in, 1 alarm switch SD plug-in, 1 overcurrent trip switch SDE plug-in, 1 voltage release MN or MX plug-in
Device ApplicationDistribution
Accessory TypePadlocking handle ON and OFF end
Network Frequency50/60 Hz
Trip Unit NameMicroLogic 3.3
Reach RegulationContains Substances of Very High Concern above threshold
