Bussmann

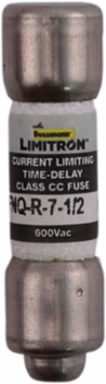

Bussmann FNQ-R-7-1/2 CLASS CC TIME DELAY

CLASS CC TIME DELAY
  • MPN: FNQ-R-7-1/2
  • UPC: 051712147118
  • PPN: BUS-FNQ-R-7-1/2

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$21.63/ EA

Description

CLASS CC TIME DELAY

Features

  • Designed with a specialized rejection tip, this Class CC fuse is engineered to fit into modern, high-interrupting-capacity fuse holders while preventing the dangerous installation of lower-rated fuses. This mechanical safety feature ensures your branch circuit remains fully code-compliant and protected against high-energy faults in industrial control panels.
  • The FNQ-R-7-1/2 features a precision-engineered time-delay characteristic specifically tuned for the high inrush currents of small control transformers and motors. By providing a 12-second minimum opening time at 200% of its 7.5-amp rating, it eliminates frustrating system shutdowns during startup cycles while maintaining lightning-fast response to genuine short circuits.
  • Rated to safely clear faults up to 200,000 Amps at 600V AC, this current-limiting fuse provides superior protection for sensitive downstream components. Its ability to rapidly restrict peak let-through current prevents catastrophic thermal and magnetic damage to your electrical infrastructure, ensuring maximum equipment uptime in demanding manufacturing settings.
  • Built with a high-grade melamine tube and nickel-plated brass endcaps, this fuse offers exceptional physical strength and thermal stability in high-temperature environments. This rugged construction prevents the housing from becoming brittle or failing under stress, providing a reliable, maintenance-free overcurrent solution for your critical automation and HVAC control circuits.

Specifications

Voltage
600 Vac
Interrupting Rating
200kA Vac RMS Sym.
Dimensions
1.5 in x 0.41 in
Amperage7-1/2 A
Fuse TypeTime-delay
ComplianceUL Listed, CSA Certified, CE, RoHS
