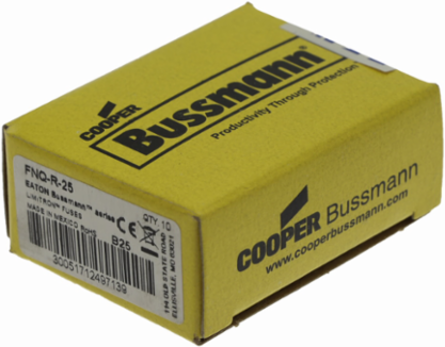

Eaton Bussmann series FNQ-R fuse, 25 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V

Documentation & Downloads

Bussmann FNQ-R-25 Eaton Bussmann series FNQ-R fuse, 25 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V

MPN: FNQ-R-25
UPC: 051712497138
PPN: BUS-FNQ-R-25

CAD

$19.22

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Eaton Bussmann series FNQ-R fuse, 25 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V

Features

Engineered with an advanced slow-blow/time-lag mechanism, the FNQ-R-25 holds strong against temporary high inrush currents for up to 12 seconds at 200% load. This intentional delay eliminates expensive nuisance tripping caused by small control transformers and motor startup cycles, ensuring uninterrupted operation for your control panels and industrial automated setups.
This cartridge-style fuse features a physical rejection tip designed exclusively for dedicated Class CC fuse blocks and DIN-rail holders. By mechanically preventing the installation of lower-rated or generic supplementary fuses, it acts as a foolproof system that keeps your plant technicians from introducing safety hazards into your electrical architecture.
Boasting a massive 200,000-amp RMS symmetrical interrupting capacity at 600 VAC, this Limitron™ series fuse delivers up to 10 times better current limitation than standard fuses. It rapidly suppresses high-energy electrical faults before they can damage downstream sensitive electrical controls, keeping your systems compliant with strict NEC® Section 110.9 safety protocols.
Fully UL Listed (Standard 248-4, Class CC) and CSA Certified, the FNQ-R-25 guarantees seamless adherence to strict North American facility safety inspections. Choosing an industry-vetted Bussmann component eliminates liability concerns and ensures full electrical safety compliance for your critical industrial branch circuits.

Documentation & Downloads

Specifications

Key Specifications

Fuse indicator: Non-indicating

Interrupt rating: 200 kAIC

Connection: Ferrule end x ferrule end

Class: Class CC

Voltage rating: 600 V

Amperage Rating: 25 A

Special featuresRejection style

TypeCurrent-limiting high inrush time-delay fuse

Response time12 sec at 200%

MaterialMelamine tube

ApplicationLine protection, small control transformers, industrial control, branch circuits

Packaging typeStandard

General

UPC: 051712497138

Product Length/Depth: .41 in

Product Width: .41 in

Warranty: Not Applicable

EAN5027590449724

Product Height1.5 in

Product Weight.15 lb

CompliancesCE Marked
