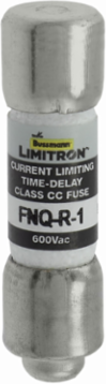

Eaton Bussmann series FNQ-R fuse, 1 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V

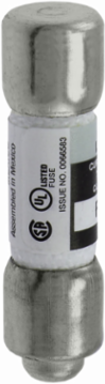

Eaton Bussmann series FNQ-R fuse, 1 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Eaton Bussmann series FNQ-R fuse, 1 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V

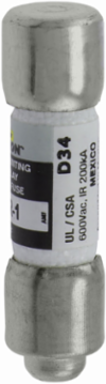

Eaton Bussmann series FNQ-R fuse, 1 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V

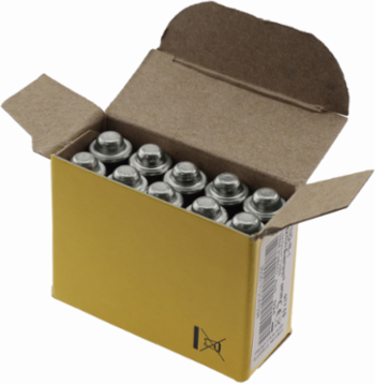

Eaton Bussmann series FNQ-R fuse, 1 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V

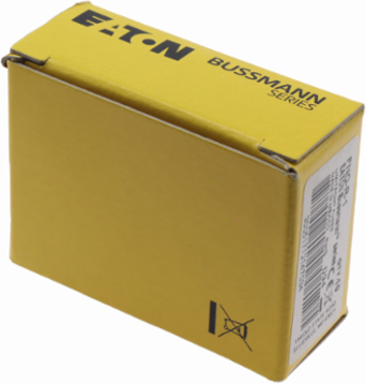

Eaton Bussmann series FNQ-R fuse, 1 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Bussmann

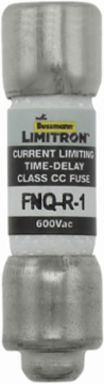

Bussmann FNQ-R-1 Eaton Bussmann series FNQ-R fuse, 1 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V

  • MPN: FNQ-R-1
  • UPC: 051712147033
  • PPN: BUS-FNQ-R-1

CAD

$18.27

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Eaton Bussmann series FNQ-R fuse, 1 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V

Features

  • Specifically designed with a rejection tip, this Class CC fuse prevents the installation of less-capable fuses into your safety-critical circuits. This mechanical fail-safe ensures your control transformers and motor branches remain protected by a high-performance, current-limiting component, maintaining the integrity of your UL 508A industrial control panels.
  • Engineered with a 12-second minimum time-delay at 200% of its 1-amp rating, the FNQ-R-1 is optimized to withstand the intense momentary surges typical of small control transformers and solenoids. This eliminates annoying nuisance blowing during equipment power-up, significantly reducing downtime and service calls in demanding automation environments.
  • With a massive 200,000 Amp interrupting rating at 600V AC, this fuse provides superior protection for downstream components in environments with high available fault current. Its advanced current-limiting technology rapidly clears electrical faults, protecting sensitive relays and contactors from catastrophic thermal and magnetic damage.
  • Rated for a full 600 volts within a space-saving 13/32" x 1-1/2" footprint, this fuse allows for high-density mounting in compact electrical enclosures. It is the ideal solution for industrial engineers and commercial electricians looking to provide robust branch circuit protection for multi-tap transformers and HVAC control systems without sacrificing valuable panel real estate.

Documentation & Downloads

Specifications

Additional

Amperage
1 A
Interrupting Rating
200 kAIC
Class
Class CC
Connection
Ferrule end x ferrule end
Diameter
.41 in
Material
Melamine tube
Fuse Indicator
Non-indicating
Voltage600 V AC
Response Time12 sec at 200%
Fuse TypeCurrent-limiting high inrush time-delay
Length1.5 in
Weight.15 lb
ComplianceCE Marked, UL Listed, CSA Certified, RoHS compliant
Special FeaturesRejection style
