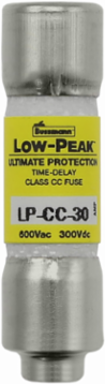

Bussmann LP-CC-30 Current-Limiting Time-Delay Fuse 30 A Dual Class CC Non-Indicating 600 Vac

Current-Limiting Time-Delay Fuse 30 A Dual Class CC Non-Indicating 600 Vac
  • MPN: LP-CC-30
  • UPC: 051712180313
  • PPN: BUS-LP-CC-30

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$17.20/ EA

Description

Current-Limiting Time-Delay Fuse 30 A Dual Class CC Non-Indicating 600 Vac

Features

  • As a specialized Class CC Low-Peak™ fuse, this component provides high-performance protection in a compact 13/32" x 1-1/2" footprint. It is specifically designed with a rejection tip to prevent the installation of lower-rated fuses, ensuring your branch circuits, control transformers, and lighting loads remain protected by a fuse capable of handling intense industrial power demands.
  • Featuring Bussmann’s advanced dual-element construction, this 30-amp fuse provides a consistent 12-second time-delay at 200% of its rated current. This allows it to easily withstand the high inrush currents typical of small motor starts and inductive loads, preventing unnecessary system shutdowns while still reacting instantly to dangerous short circuits.
  • Rated for up to 600V AC and 300V DC with a massive 200,000 Amp interrupting rating, this fuse is engineered to safely clear even the most severe electrical faults. Its superior current-limiting ability restricts peak let-through energy, significantly reducing the risk of arc flash and protecting sensitive downstream equipment from catastrophic thermal and magnetic damage.
  • The LP-CC-30 is a "Type 2" coordinated component, meaning it provides a high degree of current limitation that makes it easier to achieve selective coordination within your electrical system. This ensures that only the fuse nearest to the fault opens, localized the outage and keeping the rest of your facility’s critical operations running without interruption.

Specifications

Amperage
30 A
Interrupting Rating
200 kA at 600 Vac, 20 kA Vdc
Fuse Class
Class CC
Dimensions
1.5 in x 0.41 in
Product Weight
.15 lb
Compliance
UL Listed, CSA Certified, CE Marked, RoHS Compliant (20-30 A)
Voltage600 Vac, 300 Vdc
Fuse TypeCurrent-limiting time-delay, Dual-element
Response Time12 sec at 200% rated current
ConnectionFerrule end x ferrule end
MaterialMelamine tube
