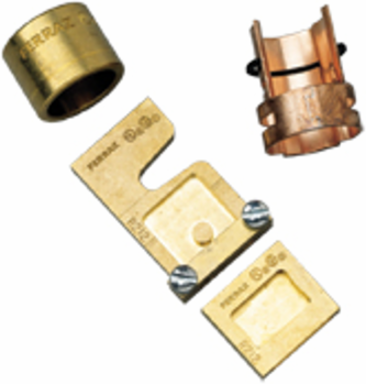

Mersen 632 Class H & K Fuse Reducer, 600VAC, 600VDC, SCCR 50kA, Lead Free, UL Certified
- MPN: 632
- UPC: 782001752231
- PPN: FER-632
CAD
$15.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen fuse reducers allow the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. For example, renewable or one-time fuses feeding a motor can be replaced with fuses sized closer to the motor nameplate current. Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips. Rejection-type reducers will allow only Class R fuses to fit Class R clips or only Class J fuses to fit Class J clips. Class J fuse reducers are not for bolt on applications.
Features
- Designed to act as a highly dependable mechanical adapter, this fuse reducer enables a 30-amp fuse to fit snugly into standard 250V, 60-amp fuse clips. This sizing capability allows facility electricians to scale down circuit capacity to match actual, lower-current equipment requirements without undergoing a costly and time-consuming replacement of the entire fuse block or disconnect switch.
- his non-rejection style hardware accommodates standard Class H and Class K fuses, ensuring physical compatibility across a vast range of legacy distribution infrastructure. By bridging physical size gaps seamlessly, it provides field technicians with the ultimate flexibility to swap or standardize inventory without run-in problems or alignment issues.
- Utilizing this reducer to install a closer-rated time-delay fuse allows you to match protection directly to a motor or branch circuit's exact nameplate full-load current. This precise overcurrent calibration shields machinery from thermal wear and insulation breakdown, preventing expensive equipment burnouts while successfully tolerating temporary inrush startup spikes.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 VAC, 600 VDC
- Ampere
- Allows 30A fuse to fit 60A clips
- UL Certification
- E105670 IZZR.E105670
- Lead Free
- Consult Technical Services
SCCR50 kA
Fuse ClassesClass H, Class K
CSA Certification6225-01 207417
ROHS CompliantConsult Technical Services
