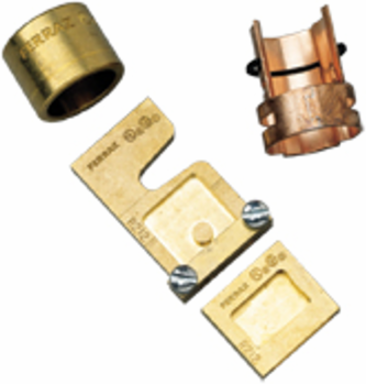

Mersen J166 Class J Fuse Reducer - 600 VAC, 600 VDC, 30-600A, 200 kA SCCR
- MPN: J166
- UPC: 782001753443
- PPN: FER-J166
CAD
$37.95
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen fuse reducers allow the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. For example, renewable or one-time fuses feeding a motor can be replaced with fuses sized closer to the motor nameplate current. Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips. Rejection-type reducers will allow only Class R fuses to fit Class R clips or only Class J fuses to fit Class J clips. Class J fuse reducers are not for bolt on applications.
Features
- The Mersen J166 is a precision-engineered Class J fuse reducer designed specifically to allow the installation of a 60A Class J fuse into a 100A Class J fuse block or disconnect switch. This is an essential solution for Canadian industrial facilities when downsizing motor loads or transformers, ensuring that the smaller fuse body is properly seated and electrically secure within a larger 100A mounting footprint.
- Designed for rapid field modification, the J166 features a simple clip-on design that requires no special tools for assembly. By sliding these reducers onto the ends of a 60A fuse, you bridge the physical gap between the smaller fuse body and the 100A clips, saving the significant time and expense of replacing an entire fused disconnect or power distribution block.
- Constructed from high-conductivity copper alloy with a protective tin plating, these reducers are built to maintain a low-resistance electrical path. The robust spring-tension design ensures a tight, permanent grip on the fuse ferrules, preventing the arcing and localized heating that can occur with poor-quality or loose-fitting aftermarket adapters.
- The J166 is rated for use in systems up to 600V AC, matching the standard voltage of Class J overcurrent protection. It is designed to adapt any 35A to 60A Class J fuse into a 100A circuit, providing a versatile "toolbox essential" for Canadian electricians managing diverse power distribution requirements in manufacturing, mining, and commercial settings.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 VAC, 600 VDC
- Class
- J
- Fuse Clip Compatibility
- Class J clips
- CSA Certification
- 6225-01 207417
- CE Conformity
- Consult Technical Services
- ROHS Compliant
- Consult Technical Services
Interrupting Rating200 kA SCCR
Fuse Type CompatibilityClass J fuses only
UL CertificationE105670 IZZR.E105670
Standards250V and 600V Class H, K, and R - UL Listed Guide No. IZZR, CSA Certified; 600V Class J - UL Listed Guide No. IZZR, CSA Certified 30-600 A
Lead FreeConsult Technical Services
