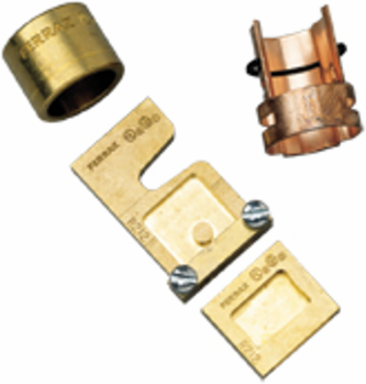

Mersen 162 Class H & K Fuse Reducer, 250V/600V, 30-600A, UL Listed, 50 kA SCCR
- MPN: 162
- UPC: 782001752255
- PPN: FER-162
CAD
$23.76
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen fuse reducers allow the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. For example, renewable or one-time fuses feeding a motor can be replaced with fuses sized closer to the motor nameplate current. Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips. Rejection-type reducers will allow only Class R fuses to fit Class R clips or only Class J fuses to fit Class J clips. Class J fuse reducers are not for bolt on applications.
Features
- This non-rejection fuse reducer acts as a mechanical adapter, allowing a 60-amp fuse to sit flush and securely within standard 100-amp fuse clips at 250 Volts. This eliminates the need to replace entire, expensive fuse blocks when down-sizing sub-circuits, providing a direct hardware path to modify your panel layout safely.
- Engineered specifically for Class H and Class K clip footprints, this unit installs quickly alongside standard one-time or renewable cartridge fuses. By ensuring continuous, low-resistance metal-to-metal contact with existing fuse block hardware, it maintains a highly reliable electrical connection that avoids the localized heating and voltage drops associated with loose improvisations.
- By permitting the drop-in of a smaller time-delay fuse, this reducer enables engineers and facility maintenance crews to size system overcurrent protection much closer to a motor's actual nameplate full-load current (FLA). This tightens your protective threshold, safeguarding high-value machinery against sustained minor overloads and tracking burnouts that a massive 100-amp fuse would completely ignore.
- Fully UL Listed (Guide No. IZZR) and CSA Certified, this industrial accessory safely maintains the integrity of your code-compliant distribution systems. Using factory-tested and approved reducing components ensures your modified machinery passes strict local workplace safety inspections while keeping your overall facility insurance liability coverage intact.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 VAC, 600 VDC, 250 V
- SCCR
- 50 kA
- UL Certification
- E105670 IZZR.E105670
- Class
- H & K
Amperage60 to 100 A
Fuse Classes CompatibleClass H & K
CSA Certification6225-01 207417
