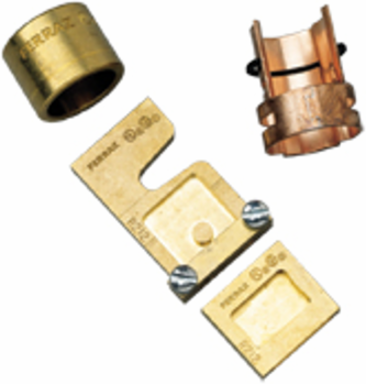

Mersen 422 Class H & K Fuse Reducer, DC 600V, SCCR 50 kA, UL & CSA Certified
Mersen 422 Class H & K Fuse Reducer, DC 600V, SCCR 50 kA, UL & CSA Certified
- MPN: 422
- UPC: 782001752293
- PPN: FER-422
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$183.25/ EA
Description
Mersen fuse reducers allow the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. For example, renewable or one-time fuses feeding a motor can be replaced with fuses sized closer to the motor nameplate current. Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips. Rejection-type reducers will allow only Class R fuses to fit Class R clips or only Class J fuses to fit Class J clips. Class J fuse reducers are not for bolt on applications.
Specifications
Product Details
- DC Voltage
- 600 VDC
- Class
- H & K
- ROHS Compliant
- Consult Technical Services
- CSA Certification
- 6225-01 207417
- CE conformity
- Consult Technical Services
Lead FreeConsult Technical Services
SCCR50 kA
UL CertificationE105670 IZZR.E105670
AC Voltage600 VAC
Standards250V and 600V Class H, K, and R - UL Listed Guide No. IZZR, CSA Certified. 600V Class J - UL Listed Guide No. IZZR, CSA Certified 30-600A
