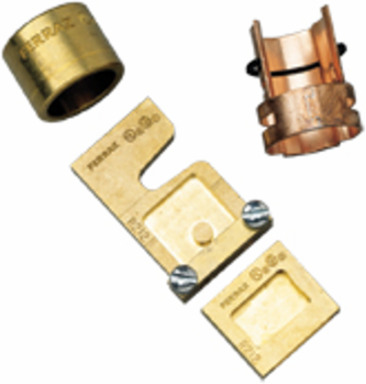

Mersen J636 Class J Fuse Reducer - 250V/600V, 30-600A, 200 kA SCCR, UL/CSA Certified
- MPN: J636
- UPC: 782001753429
- PPN: FER-J636
CAD
$29.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen fuse reducers allow the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. For example, renewable or one-time fuses feeding a motor can be replaced with fuses sized closer to the motor nameplate current. Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips. Rejection-type reducers will allow only Class R fuses to fit Class R clips or only Class J fuses to fit Class J clips. Class J fuse reducers are not for bolt on applications.
Features
- Designed specifically to bridge the physical gap between different fuse sizes, this J636 reducer allows you to securely install 30A Class J fuses into standard 60A Class J fuse clips. This precision-engineered adapter eliminates the need for expensive and labor-intensive panel or disconnect switch replacements when down-sizing your circuit protection requirements.
- Manufactured with high-conductivity copper and a robust mechanical design, this reducer ensures a low-resistance interface between the fuse and the holder. By maintaining high-pressure contact, it prevents localized overheating and arcing—common points of failure in industrial environments—ensuring your motor control center or power distribution board remains thermally stable under continuous load
- This reducer is purpose-built to preserve the integrity of your Class J electrical system, ensuring that the current-limiting properties and high interrupting ratings (up to 200kA) of the 30A fuse remain fully functional. It provides a code-compliant solution for industrial engineers and commercial electricians who need to down-fuse circuits to protect sensitive electronic controllers or smaller motors without compromising arc flash safety.
- Whether you are performing a permanent load reduction on a machine or need a temporary solution for a prototype test, the J636 provides a quick, snap-on installation that requires no special tools. This flexibility makes it an essential component for facility maintenance teams and industrial contractors looking to optimize circuit protection levels while reducing on-site inventory costs.
Documentation & Downloads
Specifications
Additional
- Voltage
- 250V AC, 600V AC/DC
- Interrupting Rating (SCCR)
- 200 kA
- UL Certification
- E105670 IZZR.E105670
- CE Conformity
- Consult Technical Services
- Lead Free
- Consult Technical Services
Amperage30 to 600A
ClassJ
CSA Certification6225-01 207417
RoHS ComplianceConsult Technical Services
