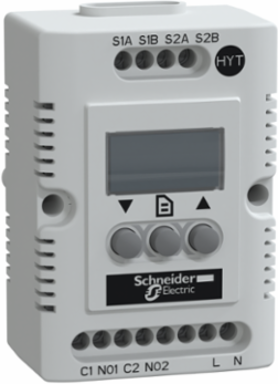

Schneider Electric NSYCCOHYT120VID ClimaSys CC Electronic Hygrotherm, -40 to 80 C, 90 to 140 V AC, 2 Outputs
- MPN: NSYCCOHYT120VID
- PPN: SCH-NSYCCOHYT120VID
- UNSPSC: 39121321
CAD
$309.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The ClimaSys CC Electronic Hygrotherm by Schneider Electric is an essential component for precise humidity control within electrical enclosures. Operating effectively in temperatures ranging from -40 to 80 C, it ensures optimal performance even in extreme environments. With a dual output capability and a voltage range of 90 to 140 V AC, this device enhances system reliability by maintaining consistent humidity levels, protecting sensitive equipment from moisture-related damage. Its robust design makes it a crucial addition to any enclosure climate control system, promoting longevity and efficiency in electrical applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Spain |
|---|
Physical Attributes
| Color | Light gray |
|---|
Complementary Attributes
| Maximum Switching Capacity | 4 A 120 V AC |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Hysteresis | 2 K programmed value, 3 % |
| Mounting Location | 35 mm DIN rail, cross rails, on mounting plate, Spacial upright |
| Temperature Setting Range | -40-80 °C, -40-80 °C |
| Local Publishable Date | 2026-04-15 |
| Service Catalog Item | Finished good |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 0627 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Display Type | OLED screen |
| Energy Efficiency Optimized | False |
| Material | PC |
| Product Name | ClimaSys CC |
| Range | ClimaSys |
| Sensor Type | optional NTC external sensor |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Input Voltage 13 Network Type | AC |
| Height Nominal | external: 85 mm |
| Certificate Agency | UR |
| Customs Code | 9032896070 |
| Warranty In Months | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Information Displayed | temperature in °F, relative humidity, temperature in °C |
| Mounting Mode | by screws, clipped |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Electrical Connection | 8 connectors 2.5 mm² |
| Flame Retardance | self-extinguishing conforming to UL94 (material V0) |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | electronic hygrotherm |
| Returnability | Yes |
| Sustainable Packaging | No |
| Input Voltage 13 Input Voltage | 90...140 V |
| Maximum Switching Capacity 3 Maximum Switching Capacity | 4 A |
| Width Nominal | external: 56 mm |
| Nbr. Of Units In Pkg. | 1 |
| Silicone Free | Yes |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2103012EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2103012EN |
| Ambient Air Temperature For Operation | -40-80 °C, -40-80 °C |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | electronic hygrotherm |
|---|
ETIM
| ETIM 8 | EC004587 |
|---|---|
| ETIM 10 | EC004587 |
| ETIM 9 | EC004587 |
|---|
Output Attributes
| Number Of Outputs | 2 ventilation/heating function |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Voltage | 90...140 V AC |
|---|
