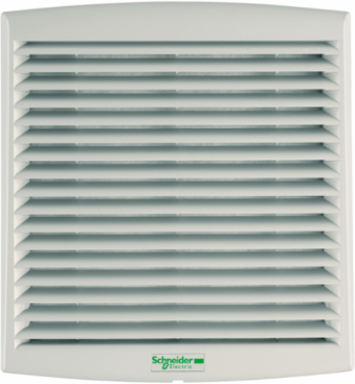

Schneider Electric NSYCVF85M48DPF ClimaSys Ventilation Fan, IP54, 79 m3/h, 48V DC, 150 mm Width

MPN: NSYCVF85M48DPF
PPN: SCH-NSYCVF85M48DPF
UNSPSC: 39121324

$366.42

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed to enhance air circulation and maintain optimal conditions within electrical enclosures, the ClimaSys ventilation fan from Schneider Electric is a reliable solution for climate control in demanding environments. With an impressive airflow capacity of 79 m3/h, this fan operates efficiently at 48V DC, making it suitable for various industrial applications. Housed in an IP54-rated casing, it provides effective protection against dust and moisture, ensuring long-lasting performance. Its compact 150 mm width allows for versatile installation options, making it an essential component for safeguarding electrical equipment from overheating and extending lifespan.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	520 g

Physical Attributes

Color	outlet grille Gray RAL 7032)

Complementary Attributes

Line Rated Current	0.173-0.173 A
Us Rated Supply Voltage	25...55.2 V

Maximum Pressure	50 Pa flow rate 0 m³/h

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Condition Of Use	surrounding environment must be relatively clean, filter must be cleaned and replaced regularly, outside temperature must be 5 °C lower than inside temperature, overfrequent filter replacement should be avoided, flow rates depends on the work point, see ProClima software
Carbon Footprint Of The Distribution Phase A4	1.0305430369658286, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.05778959136933235, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	542 kg CO2 eq., 541.7387207716235
Local Publishable Date	2025-05-17
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1107017EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bearing Type	ball
Material	outlet grille injected thermoplastic (ASA PC)
Power Range	8 W
Product Name	ClimaSys CV
Range	ClimaSys
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	547 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Height Nominal	external: 170 mm
Certificate Agency	CSA
Customs Code	8414596590
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	17
Recyclability Potential In %	64

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Device Composition	1 axial motor, 2 protective grille on the front and rear surfaces1 filter front of axial motor1 outlet grille front, 1 cut-out template, 1 power cord
Carbon Footprint Of The End Of Life Phase C1 To C4	0.8 kg CO2 eq., 0.7755798285096418
Carbon Footprint Of The Manufacturing Phase A1 To A3	3 kg CO2 eq., 3.376964693494261
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Noise Level	46-49 dB
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	fan
Returnability	No
Sustainable Packaging	No
Type Of Ventilation Filter	standard
Connections Terminals	cable
Data Source	extrapolated product
Width Nominal	external: 150 mm
Nbr. Of Units In Pkg.	1
Cut Out Dimensions	125 x 125 mm
Functional Unit Description	"Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1340.28

Environment Attributes Main

Ambient Air Temperature For Operation	-10-70 °C, -10-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	546.9795979219626
Circularity Profile	ENVEOLI1107017EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0008-ed3-EN-2023 10 19

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Air Flow	free flow rate with standard filter: 79 m3/h
Environmental Disclosure	ENVPEP110717EN
Ip Degree Of Protection	IP54
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP110717EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
