Schneider Electric NSYCMUMA50 Articulated Fixing 50 mm, Moulded Steel, 4.6 kg, 170° Operating Angle
- MPN: NSYCMUMA50
- PPN: SCH-NSYCMUMA50
CAD
$1092.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

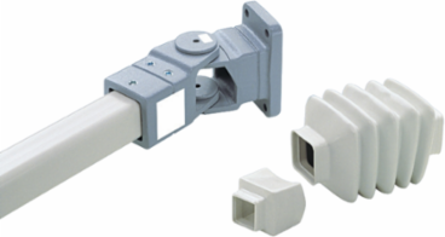

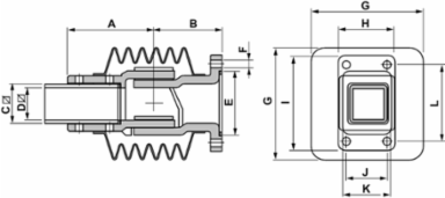

Spacial S3CM HMI articulated fixing. 147 x 210 mm. Mounting between tube and support. By screw (M12) horz tube, and by 4 screws (M11) on support. For 50 mm square tube, option of passing cables through the inside. Op angle is 170°. Load is 4.35 kg. Moulded steel, epoxy-polyester powder finish. Grey RAL 7035.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, Spain
- Width
- 5.83 in
Height5.83 in
Depth210 mm
Physical Attributes
- Color
- bracket Gray RAL 7040), bellow Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition

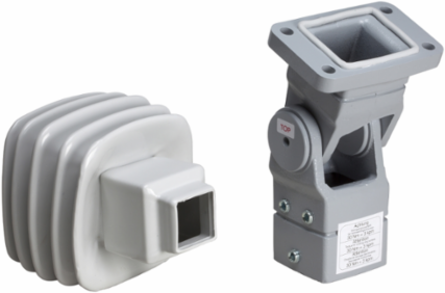

- fixing elements, 1 bellow, 1 fixing and rotating bracket
- Fixing Mode
- by fixing element M12 - horizontal tube, by 4 screws M11 - on support
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Mounting Location
- between tube and support
- Permanent Permissible Load
- 4.35 kg
- Product Or Component Type
- fixing on support
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Accessory Separate Part Category
- mounting accessory
- Pep Code
- ENVPEP1001004EN
- Height Useful
- 148 mm
- Width Real
- 148 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Mounting Supportoption of passing cables through the inside, for 50 mm square tube
Local Publishable Date2026-04-15
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Materialmoulded steel
Operating Angle170 °
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Warranty In Months18
Height Nominal148 mm
Width Nominal148 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- fixing on support
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
